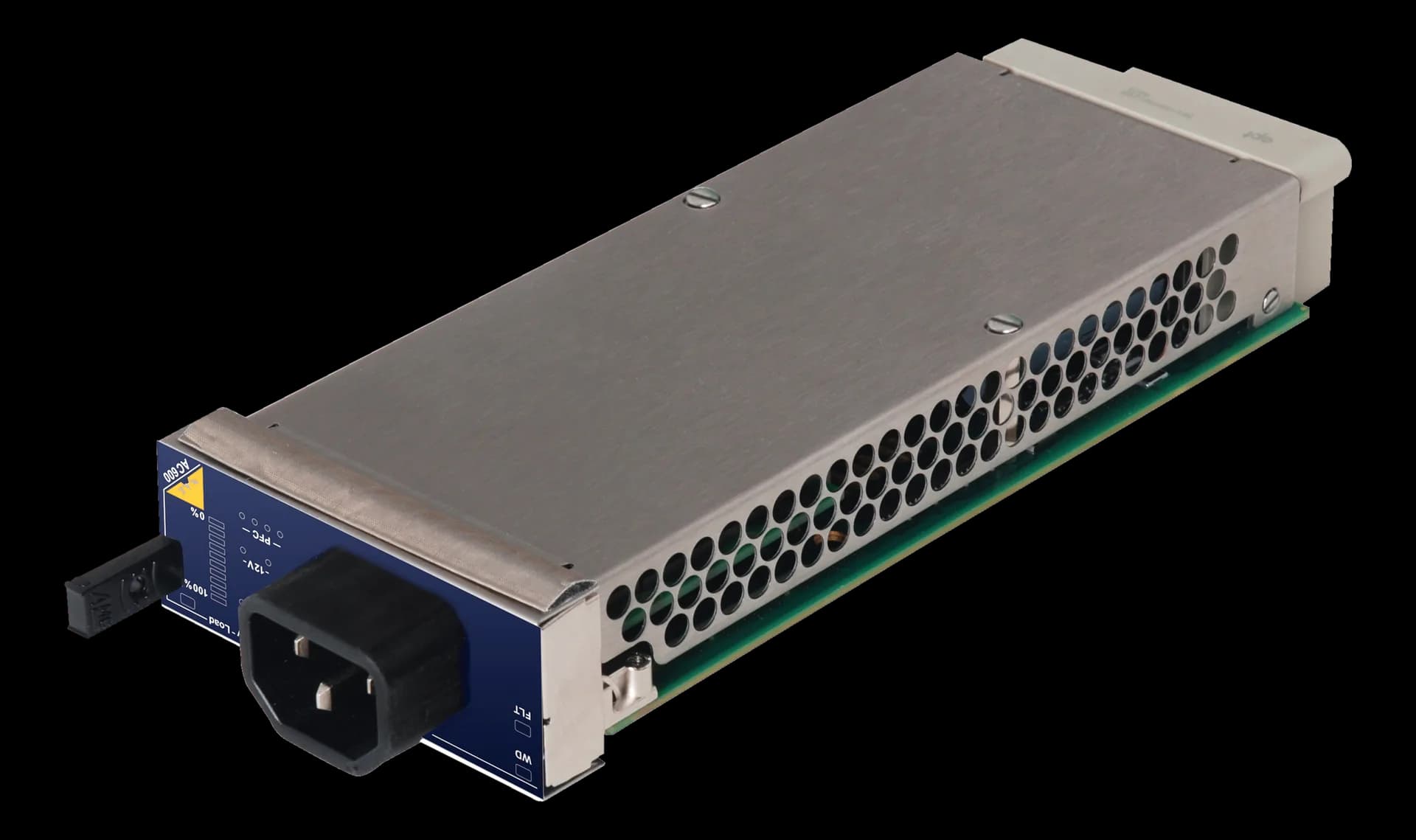

NAT-PM-AC600Full-size AC power module for MicroTCA shelves
- Manufacturer
In MicroTCA systems power is not an external accessory but a module that takes a slot of the shelf: NAT-PM-AC600 receives the alternating mains current and distributes to the AMC modules the voltage laid down by the standard, under the control of the shelf manager.
The module is designed for continuous service, with stated RoHS conformance and an operating temperature range from -40 to 85 °C that allows use in cabinets without climate control. An indicator lamp reports the draw, making the state of the supply readable without connecting to the system.
At a glance
- FPGA / processing: Lattice MACHXO2
- Board function: Power
- Architecture standard: MTCA
- Form factor: Single full-size
- Power consumption: 1 W
Technical specifications
| FPGA / processing | Lattice MACHXO2 |
|---|
| Board function | Power |
|---|---|
| Architecture standard | MTCAAMC |
| Form factor | Single full-size |
| Power consumption | 1 W |
|---|
| Operating temperature | -40–85 °C |
|---|---|
| MTBF | 204814 h |
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
