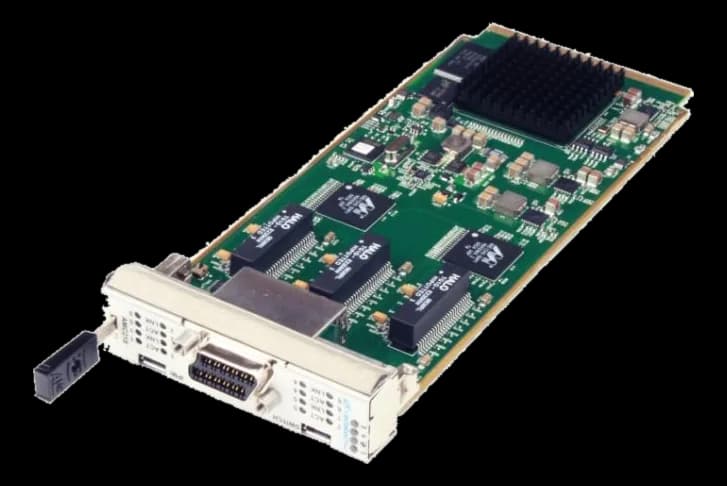

AMC218AMC.2 GbE switch with front ports on an MRJ-21 connector
- Manufacturer
AMC218 is an AdvancedMC module conforming to AMC.2 that joins Ethernet switch function and shelf fabric link: the front ports are gathered on a single MRJ-21 connector, while two GbE ports are routed towards the backplane as laid down by the AMC.2 specification.
The switch handles IEEE 802.1Q VLANs, jumbo frames, ACL rules and per-port CoS queues. The module is independent of the operating system and the extraction handle allows hot insertion.
At a glance
- Board function: Switch / Fabric
- Architecture standard: AMC.2
- Power consumption: 7 W
Technical specifications
| Board function | Switch / Fabric |
|---|---|
| Architecture standard | AMC.2AMC |
| Bus interface | MRJ-21 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 7 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
