MicroTCA Blades & Modules (MTCA.0)

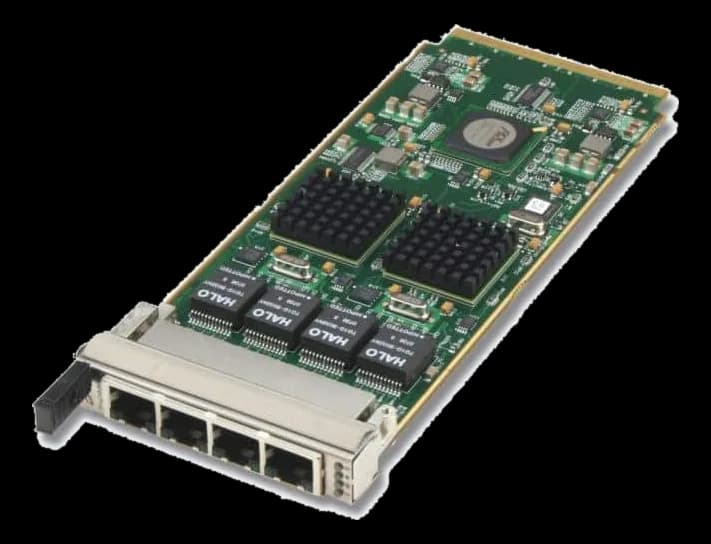

AMC206AMC Ethernet module with four switchable Gigabit ports
- Manufacturer
AMC206 places four Gigabit Ethernet ports at the disposal of the MicroTCA shelf, working at 10/100/1000 Mbps over copper towards the front panel and linking at 1000 Mbps towards the AMC.2 backplane.
At order time the split of the ports is chosen: all four on the front panel in an AMC.1 arrangement, or two at the front and two towards the backplane. The Ethernet controller is Intel, stated draw is 8 W and storage temperature runs from -40 to 90 °C.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 8 W
Technical specifications
| Ethernet ports | Intel® Gigabit Ethernet controller (82575 chip) |
|---|
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC.2AMC |
| Bus interface | x4 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 8 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | ULFCCCE |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
