A GOMA ELETTRONICA brandRacks & Cabinets
23 products · 9 categories

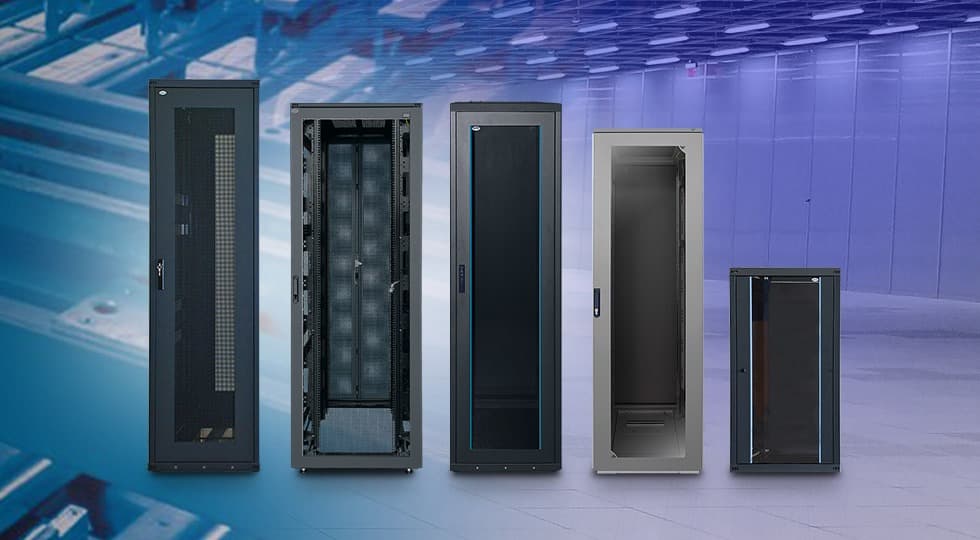

19″ rack enclosures under the APW brand: floor-standing and wall-mount cabinets, server, IP and EMC versions, climate-controlled, stainless steel and outdoor, open frame racks and modular consoles. Chosen by usable height in rack units, depth and ingress protection; each line has its own accessories.
The product families
The way into the domain: each family has its own page, with technical filters and comparable specifications.
Catalog sizes
Size overview
One row per series: frame dimensions and the rack-unit heights in the catalog. Click a height to keep only the series that offer it.
Click a height in the header to filter the series.
| Heights in the catalog(U) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series | Width(mm) | Depth(mm) | ||||||||||||||
| IMLAN B-SIDE19″ wall-mount rack cabinet with additional 6U side rails for deep equipment | 600 | 300 | in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog |
| IMRAK 41019″ wall-mount rack cabinet with welded structure, optional rear extension | 600 | 400 / 500 o 400 + 100 / 500 + 100 | in the catalog | not in the catalog | in the catalog | in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog |
| IMRAK 31019″ wall-mount rack cabinet in assembly kit, with 360° access | 600 | 400 / 500 | not in the catalog | in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog |
| IMLAN19″ wall-mount rack cabinet with removable side panels and 360° access | 600 | 400 / 500 / 600 | in the catalog | not in the catalog | in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog |
| IMRAK 61019″ floor-standing rack cabinet with welded frame for compact installations | 600 | 600 / 800 | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog |
| EASYRAKSelf-supporting 19″ frame accessible on all sides, 150 Kg load capacity | 600 | — | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | not in the catalog |
| IMRAK 140019″ multi-platform floor-standing rack cabinet, 1000 Kg static load capacity | 600 / 800 | 674 / 874 | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog | in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| IMAGE19″ Floor-Standing Multi-Application Rack Cabinet, 500 Kg Static Load Capacity | 600 / 800 | 600 / 800 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog |
| CO-LOCATION19″ server cabinet divided into 2, 3 or 4 independent zones | 600 / 800 | 1000 / 1200 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | in the catalog |
| IMAGE IP3019″ floor-standing rack cabinet with IP30 protection, 500 Kg static load capacity | 600 / 800 | 600 / 800 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog |
| IMAGE Server19″ floor-standing server rack cabinet, static load capacity 1000 Kg | 600 / 800 | 1000 / 1200 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog |
| IMRAK 103219″ floor-standing rack cabinet with IP32 protection and Aluzinc uprights | 600 / 800 | 600 / 800 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| VERAK EMC19″ Floor-standing rack cabinet with EMI/EMC shielding above 80 dB at 100 MHz | 600 / 800 | 689 / 889 / 989 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| VERAK EMC/IP19″ Floor-Standing Rack Cabinet with EMC Shielding and IP65 Protection | 600 / 800 | 689 / 889 / 989 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| VERAK INOX19″ rack cabinet entirely in AISI 316 stainless steel, IP54 | 600 / 800 | 689 / 889 / 989 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| VERAK IP19″ Floor-Standing Rack Cabinet with IP65 Protection Against Dust and Water | 600 / 800 | 689 / 889 / 989 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| VERAK KRIOIndustrial 19″ rack cabinet with integrated conditioning unit, IP54 | 600 / 800 | 689 / 889 / 989 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog | not in the catalog | in the catalog |
| VERAK S-MAX19″ floor-standing rack cabinet for high-density servers, load capacity 1500 Kg | 600 / 800 | 978 / 1178 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog |
| IMAGE Open Frame19″ open frame chassis, versatile, static load capacity 500 Kg | 600 / 800 | 600 / 800 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | not in the catalog | in the catalog | in the catalog |
| Blade S-MAX19″ rack cabinet for high-density servers with additional vertical units | 600 | 978 / 1178 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog |
| IMRAK Server MaxFloor-standing 19″ rack cabinet for servers, three-zone split rear uprights | 600 / 800 | 1074 | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | not in the catalog | in the catalog | not in the catalog | in the catalog |
Width and depth are the frame dimensions, the heights are those in the catalog for the series: not every combination exists in every size. Each series page carries the actual part numbers, height by height.
