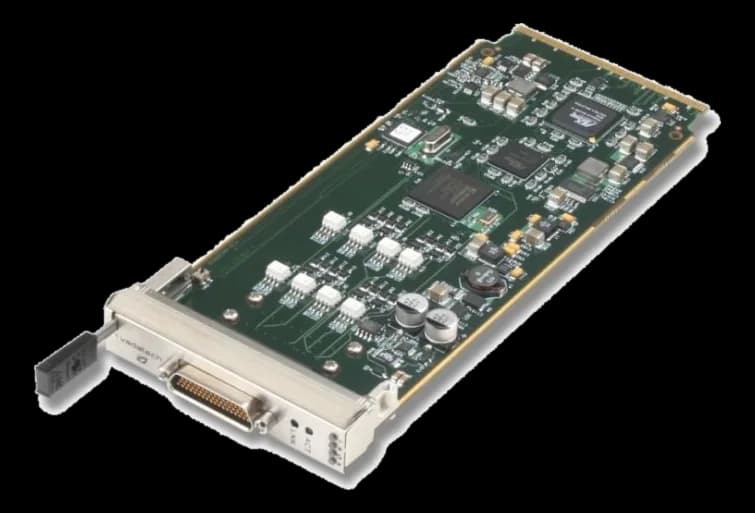

AMC090AMC.1 acquisition module with 16 isolated inputs
- Manufacturer
AMC090 gathers eight TTL/CMOS channels and eight voltage channels from 0 to 10 V on a single AMC.1 module for MicroTCA shelves, with all the inputs landed on the 51-pin Micro DIN connector of the front panel and module management over IPMI 2.0.
Against the other I/O modules of the same series it sits at the lowest draw, 3.5 W, with a stated MTBF of 238,000 hours and storage temperature from -40 to 90 °C. Software support covers Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3.5 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Form factor | Single full-size(optional)Single mid-size(optional) |
| Bus interface | 51-Pin Micro DIN stylex4 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 238000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
