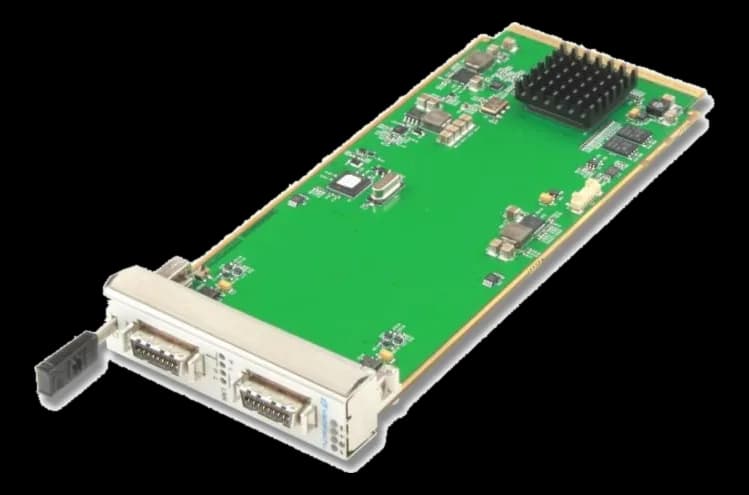

AMC210AMC.1 module with two 10GbE ports on CX4 connectors
- Manufacturer
AMC210 is an AdvancedMC module conforming to AMC.1 that brings two 10GbE links on CX4 connectors into an AdvancedTCA or MicroTCA shelf.
Towards the backplane the module presents itself as a PCIe Gen 2 device, with a link width of x4 or x8. The controller exposes jumbo frames and multiple receive queues, while management stays on IPMI; the operating systems supported are Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 9 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x4 or x8Dual CX4 Connectors |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 9 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
