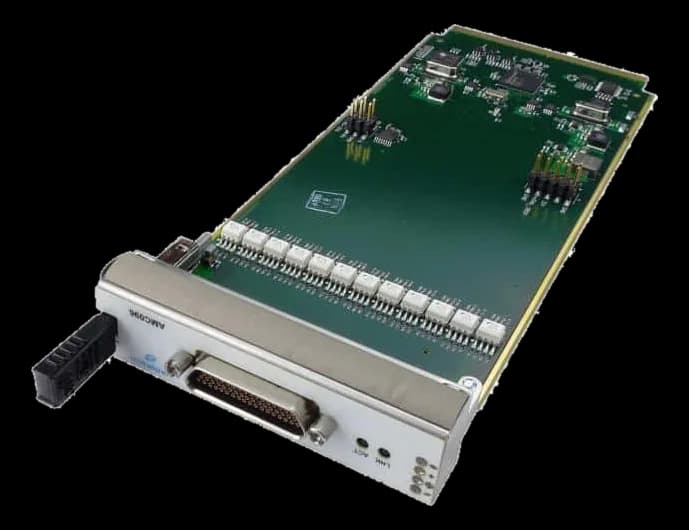

AMC096AMC.0 and AMC.1 module with 24 opto-isolated inputs
- Manufacturer
AMC096 fields 24 opto-isolated inputs on a single compact module: twelve voltage-source channels and twelve contact-sense, both accepted from 5 to 66 V, conforming both to AMC.0 and to AMC.1.
The inputs are read with a measurement interval of 1 ms and state change is configurable on edge or by level. Stated draw is 3 W, MTBF 273,000 hours and storage temperature runs from -40 to 85 °C.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Form factor | Single full-size(optional)Single compact-size(optional) |
| Bus interface | x451-pin Micro DIN connector |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Storage temperature | -40–85 °C |
|---|---|
| MTBF | 273000 h |
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
