MicroTCA Blades & Modules (MTCA.0)

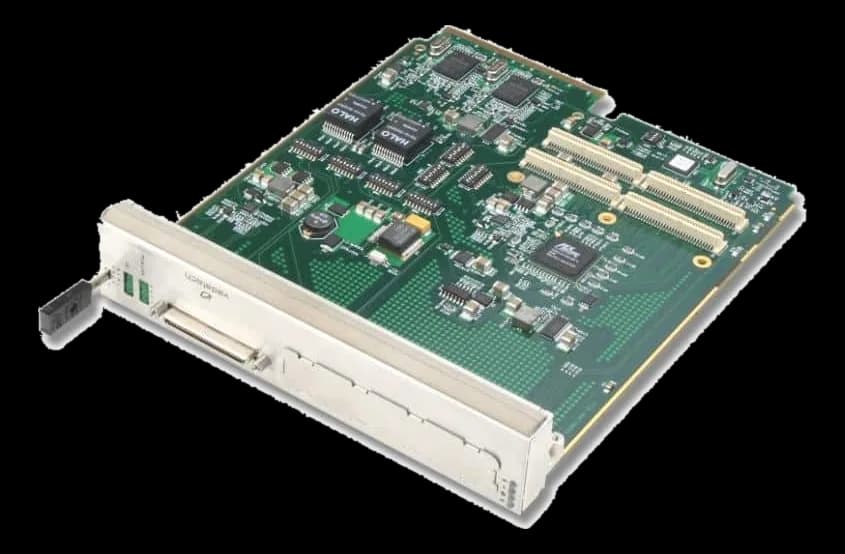

AMC100Double-width AMC carrier for PMC and PrPMC modules
- Manufacturer
AMC100 is a double-width, full-height carrier that brings a PMC or PrPMC site inside a MicroTCA shelf: existing mezzanine boards stay usable without redesign, with the I/O brought to the front panel through a Mini SCSI connector.
The carrier, conforming to AMC.1 and AMC.2, draws 3 W without the mezzanine module fitted and feeds the PMC site at 3.3 V. Stated MTBF is 248,000 hours and storage temperature runs from -40 to 90 °C.
At a glance
- Board function: Carrier
- Architecture standard: AMC.2
- Power consumption: 16.5 W
Technical specifications
| Board function | Carrier |
|---|---|
| Architecture standard | AMC.2AMC.1AMC |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 16.5 W |
|---|
| Dimensions | 148.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 248000 h |
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
