MicroTCA Blades & Modules (MTCA.0)

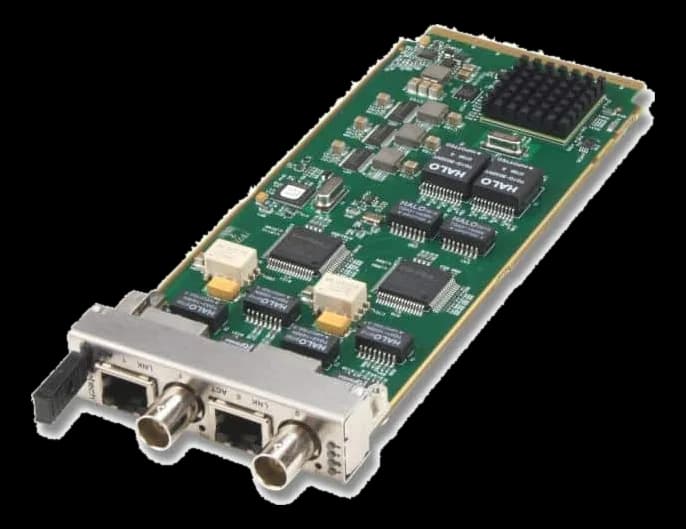

AMC207AMC.1 media converter module between 10-Base2 and 10-BaseT
- Manufacturer
AMC207 is an AdvancedMC module conforming to AMC.1 that places 10-Base2 ports on BNC connectors alongside 10-BaseT ports on RJ-45, working as a media converter inside an AdvancedTCA or MicroTCA shelf.
The link towards the carrier runs over PCIe and management follows IPMI. The module supports IP, TCP and UDP checksum offloading and is recognized by Linux, Windows, Solaris and VxWorks. The format is single-width, with a mid or full height front panel.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 4 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | 2× BNC, 2× RJ-45x4 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 4 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | CEULFCC |
|---|
| Operating systems | VxWorksLinuxWindowsSolaris |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
