MicroTCA Blades & Modules (MTCA.0)

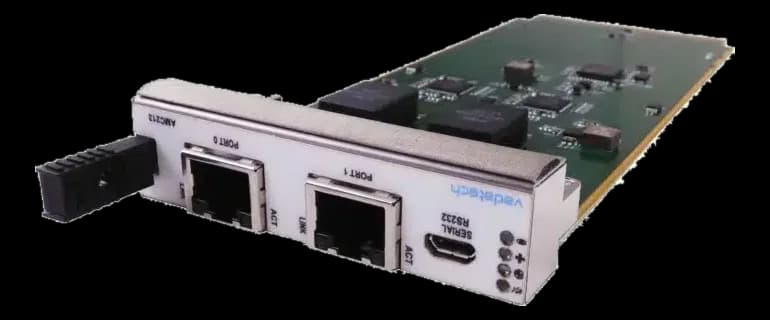

AMC213AMC.2 module bringing the two backplane GbE ports to copper
- Manufacturer
AMC213 is an AdvancedMC module conforming to AMC.2 that converts to copper ports 0 and 1 of the backplane, defined by the standard as 1000Base-BX links, making them available on two front connectors.
It is the module called for when an AdvancedTCA or MicroTCA carrier has to expose its own GbE connectivity without adding a switch. The format is single-module, with a mid-size or full-size panel, and management runs over IPMI; activity and link LEDs are fitted.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.2
- Power consumption: 3 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.2AMC |
| Bus interface | Micro USBDual RJ-45 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
