MicroTCA Blades & Modules (MTCA.0)

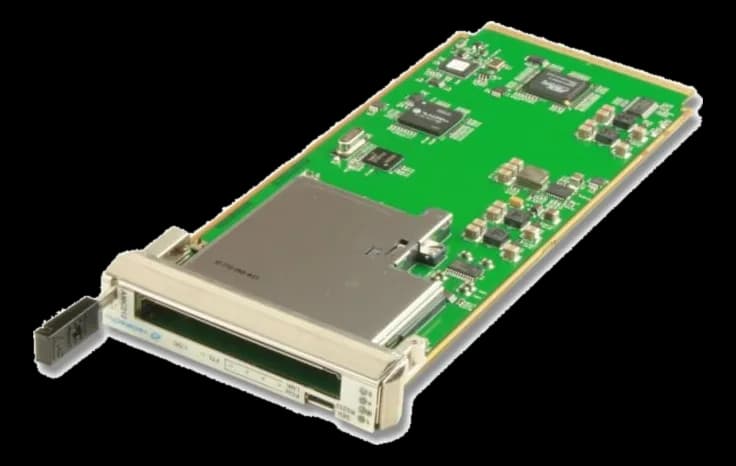

AMC212AMC.1 module with an ExpressCard/54 slot on the front panel
- Manufacturer
AMC212 makes an ExpressCard/54 slot available inside a MicroTCA shelf: commercial acquisition, memory or cellular connectivity cards can be fitted from the front panel without developing a dedicated module.
The module conforms to AMC.1 and draws 3 W without the ExpressCard fitted; storage temperature runs from -40 to 90 °C. Operation does not depend on the host operating system.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | PCIe Gen2 interface x2 laneSingle slot Express/54x1 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
