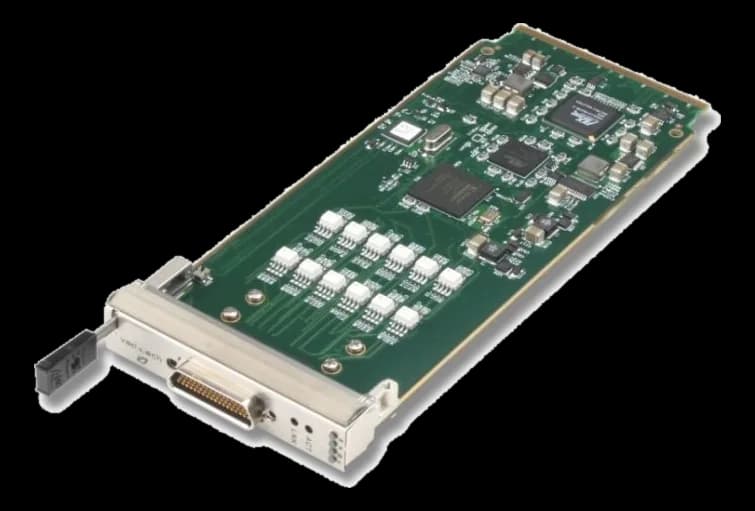

AMC091AMC.1 module with 24 opto-isolated inputs on Micro DIN
- Manufacturer
AMC091 provides 24 optically isolated inputs in AMC.1 format: twelve voltage-source channels and twelve contact-sense channels, all landed on a 51-pin Micro DIN connector on the module front panel.
The inputs are sampled with a measurement interval of 1 ms, so as to follow fast field signals. Stated draw is 3.5 W, MTBF 273,000 hours and storage temperature runs from -40 to 90 °C; software support covers Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3.5 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x451-Pin Micro DIN |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 273000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
