MicroTCA Blades & Modules (MTCA.0)

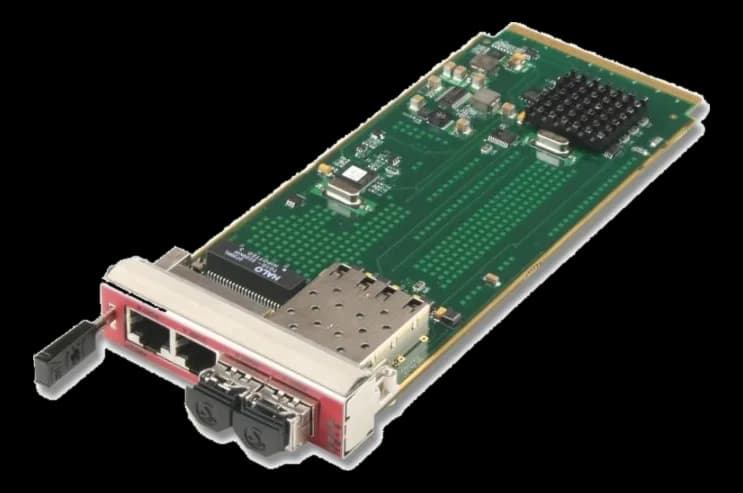

AMC203Two-port AMC.1 Ethernet module with selectable transceivers
- Manufacturer
AMC203 is an AdvancedMC module conforming to AMC.1 that brings two Gigabit Ethernet interfaces into an AdvancedTCA or MicroTCA shelf, with a PCIe link towards the carrier.
The front connectors can be RJ-45 copper or LC fiber with SX or LX transceivers, chosen at order time. The module handles IP, TCP and UDP checksum offloading and is recognized by Linux, Windows, Solaris and VxWorks; hot removal rests with the front handle.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 3 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x4 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 580000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
