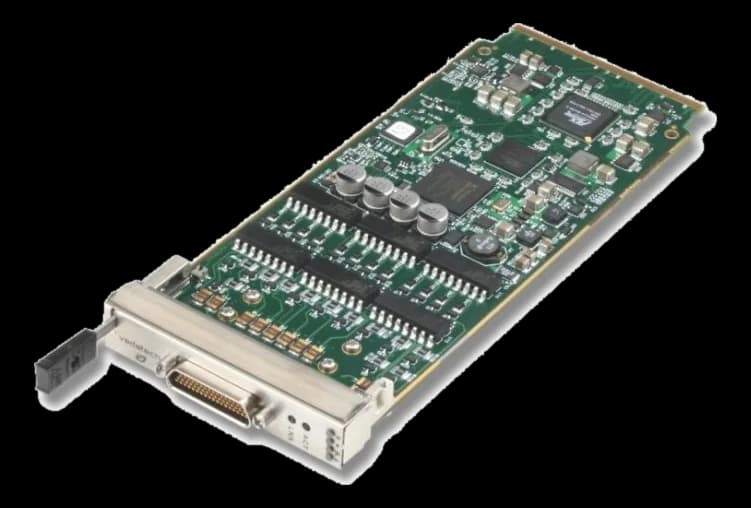

AMC094AMC.1 module with 24 isolated outputs and aeronautical PODO
- Manufacturer
AMC094 exposes 24 optically isolated outputs in AMC.1 format: twelve as current source on the isolated output voltage and twelve as current sink, with the PODO signal tied to the 5 V aeronautical voltage.
The input supply accepts from 10 to 38 V with a peak of 45 V for 500 ms. Stated draw is 3.5 W, MTBF 242,000 hours and storage temperature runs from -40 to 90 °C; software support covers Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3.5 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x451-Pin Micro DIN |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 242000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
