MicroTCA Blades & Modules (MTCA.0)

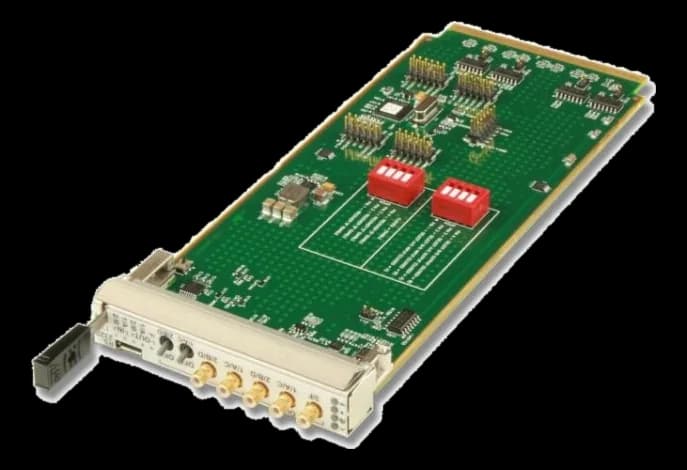

AMC002Telco/Fabric clock AMC module with control and monitor functions
- Manufacturer
AMC002 is a single-width module in half-height, with a mid or full-height option, and measures 73.5 mm wide by 180.6 mm deep. The front panel carries an RS-232 interface and LEDs dedicated to clock state and to IPMI management control.
Storage temperature runs from -40 to +95 °C; the module withstands vibration of 1G between 5-500Hz and shock of 30G on each axis, with relative humidity from 5 to 95 percent non-condensing.
The product is RoHS and NEBS conformant and is designed to meet the FCC, CE and UL certifications where applicable, with optional conformal coating.
At a glance
- Board function: Clock / Timing
- Architecture standard: AMC
- Power consumption: 2 W
- Operating temperature: -20–75 °C
Technical specifications
| Board function | Clock / Timing |
|---|---|
| Architecture standard | AMC |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 2 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Operating temperature | -20–75 °C |
|---|---|
| Storage temperature | -40–95 °C |
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
