MicroTCA Blades & Modules (MTCA.0)

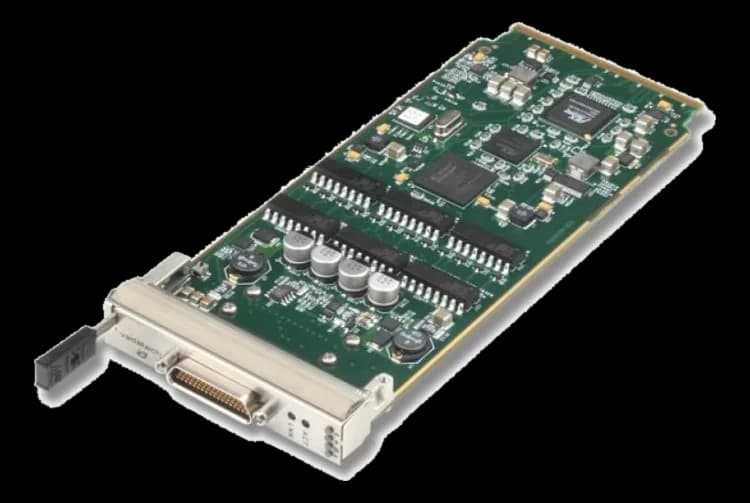

AMC093AMC.1 module with 24 isolated outputs at two voltage levels
- Manufacturer
AMC093 offers 24 optically isolated outputs on an AMC.1 module: twelve outputs work at 5 V and twelve at 10 V, so as to drive field loads with two different logic levels from the same slot of the MicroTCA shelf.
The input supply accepts from 10 to 38 V with a peak of 45 V for 500 ms. Stated draw is 3.5 W, MTBF 251,000 hours and storage temperature runs from -40 to 90 °C; software support covers Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3.5 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x451-Pin Micro DIN |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 251000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
