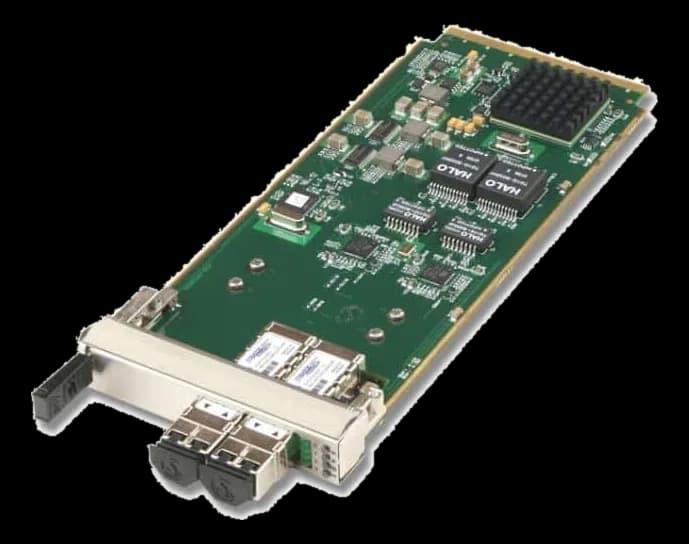

AMC208AMC.1 module with two 100-BaseFX ports on LC connectors
- Manufacturer
AMC208 is an AdvancedMC module conforming to AMC.1 that adds two 100-BaseFX fiber interfaces to an AdvancedTCA or MicroTCA shelf; the LC connectors are exposed on the front panel.
The module carries out IP, TCP and UDP checksum offloading and is recognized by Linux, Windows, Solaris and VxWorks. The front panel comes in reduced, mid or full height and the extraction handle allows hot insertion.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 4 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | 2× fiber LC portsx4 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 4 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | CEULFCC |
|---|
| Operating systems | VxWorksLinuxWindowsSolaris |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
