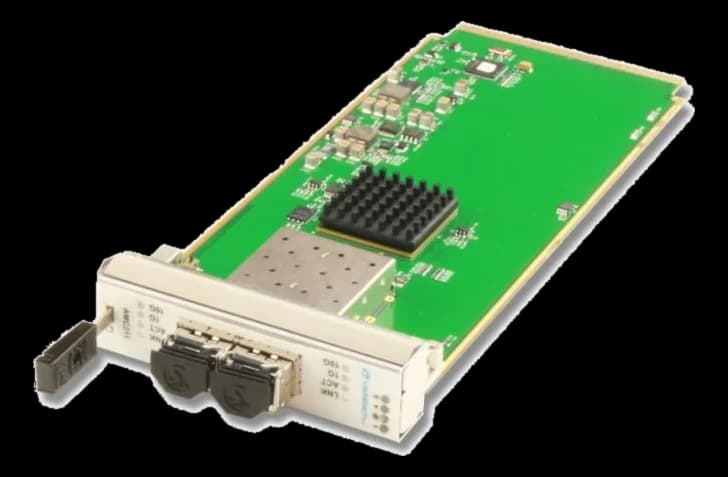

AMC211AMC.1 module with two 10GbE ports on SFP+ cages
- Manufacturer
AMC211 is an AdvancedMC module conforming to AMC.1 that exposes two 10GbE interfaces on SFP+ cages, for AdvancedTCA and MicroTCA shelves where optical connectivity has to be brought to the front panel.
The link towards the carrier is second generation PCIe, with an x4 or x8 link. The controller offers TCP segmentation, jumbo frames and VLAN and L3 filters; module management passes through IPMI and the operating systems supported are Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 12 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x4 or x8Dual SFP+ |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 12 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
