MicroTCA Blades & Modules (MTCA.0)

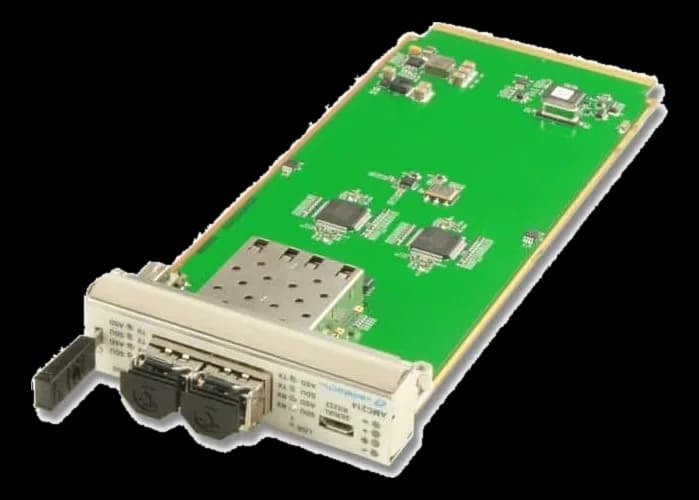

AMC214AMC.2 module with two GbE ports on SFP cages
- Manufacturer
AMC214 is an AdvancedMC module conforming to AMC.2 that makes ports 0 and 1 of the backplane available on the front panel as two Gigabit Ethernet interfaces on SFP cages.
The transceiver is chosen at order time: RJ-45 copper, LC fiber with SX or LX optics, or no transceiver at all. The module is independent of the operating system, management passes through IPMI and the front panel comes in mid or full height.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.2
- Power consumption: 4 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.2AMC |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 4 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
