MicroTCA Blades & Modules (MTCA.0)

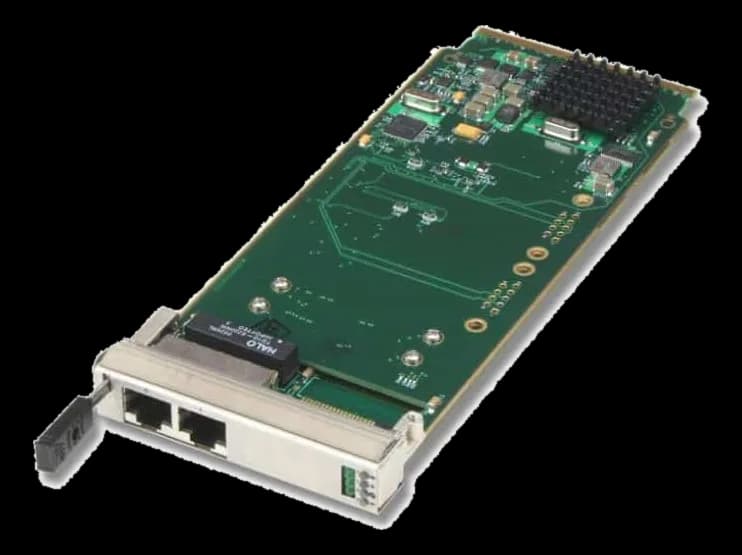

AMC202Two-port Gigabit Ethernet AMC.1 module, copper or fiber
- Manufacturer
AMC202 is an AdvancedMC module conforming to AMC.1 that adds two Gigabit Ethernet ports to an AdvancedTCA or MicroTCA shelf; the link towards the carrier runs over PCIe.
The front interface is chosen at order time between RJ-45 copper connectors and LC fiber connectors, with SX or LX transceivers. The module supports IP, TCP and UDP checksum offloading and is recognized by Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: Ethernet
- Architecture standard: AMC.1
- Power consumption: 3 W
Technical specifications
| Board function | Ethernet |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | x4 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 603000 h |
| Certifications | CEULFCC |
|---|
| Operating systems | VxWorksLinuxWindowsSolaris |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
