AMC004GPS clock AMC module with PCIe or SRIO fabric options
- Manufacturer

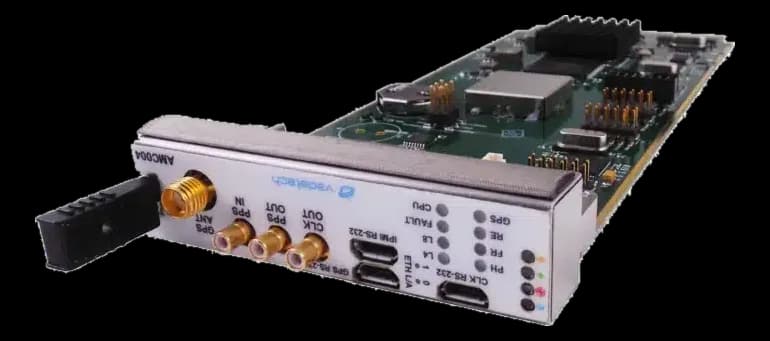

AMC004 is a single-module AdvancedMC, available in mid-size or full-size format, that brings the GPS clock reference inside an AdvancedTCA or MicroTCA shelf.
The module states AMC.0, AMC.1 and AMC.4 conformance: the interface towards the backplane is selectable at order time among PCIe, SRIO and GbE alone. The front panel carries an SMA connector for the GPS antenna, RS-232 ports on micro USB and SMB connectors for the clocks; the oscillator is of the Stratum-3 class.
At a glance
- Board function: Clock / Timing
- Architecture standard: AMC.1
- Form factor: Single mid-size
- Power consumption: 2.5 W
Technical specifications
| Board function | Clock / Timing |
|---|---|
| Architecture standard | AMC.1AMC.4AMC |
| Form factor | Single mid-size |
| Bus interface | 1 = PCIe (AMC.1) Lane 4+GbE (AMC.2) Lanes 0/1; 2 = SRIO (AMC.4) Lane 4+GbE (AMC.2) Lanes 0/1; 4 = Only GbE (AMC.2) Lanes 0/1H = Temperature RangeSMA for GPS antenna; 3x Micro USB for RS-232 Ports; 3x SMB for clocksDual x4 or single x8 as PCIe |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 2.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–95 °C |
|---|
| Certifications | CEFCCUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
