MicroTCA Blades & Modules (MTCA.0)

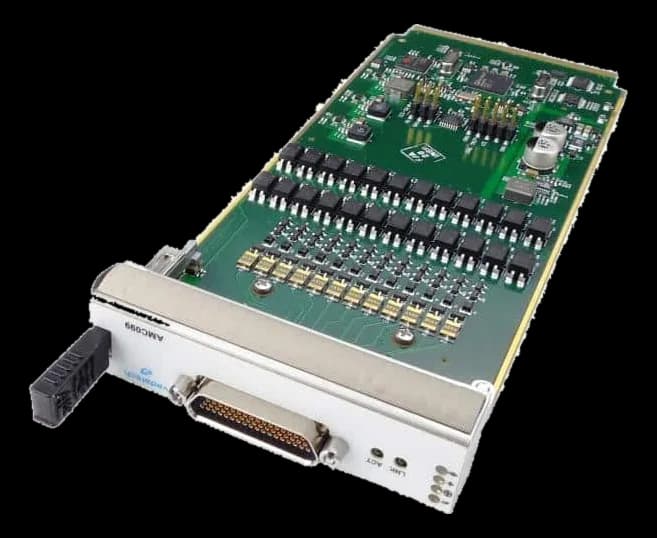

AMC099AMC.0 and AMC.1 module with 24 isolated current source outputs
- Manufacturer
AMC099 is a single compact module with 24 optically isolated outputs, conforming to AMC.0 and AMC.1 and therefore usable in MicroTCA shelves of different generations; the PODO signal is tied to the 5 V aeronautical voltage.
The input supply accepts from 10 to 38 V with a peak of 45 V for 500 ms. Stated draw is 3 W, MTBF 242,000 hours and storage temperature runs from -40 to 85 °C; the module is stated RoHS conformant.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 3 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Form factor | Single full-size(optional)Single compact-size(optional) |
| Bus interface | x451-pin Micro DIN connector |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 3 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–85 °C |
|---|---|
| MTBF | 242000 h |
| Certifications | CEULFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
