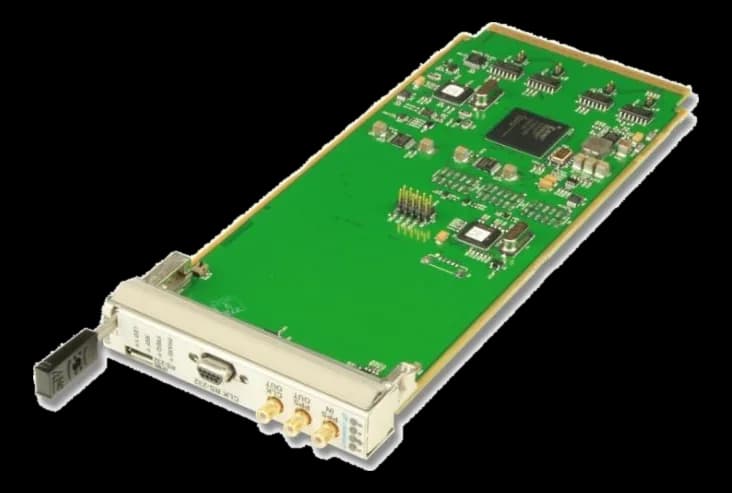

AMC003AMC.0 GPS clock module with Stratum 3 oscillator
- Manufacturer
AMC003 is an AdvancedMC module conforming to AMC.0 that generates and distributes the clock reference from a GPS signal, for AdvancedTCA and MicroTCA shelves where synchronization is centralized.
The module front carries SMB connectors for the clocks and an RS-232 port on Micro-DB9; the LEDs report clock state and IPMI control. The oscillator is of the Stratum 3 VCTCXO type and the front panel comes in reduced, mid or full height.
At a glance
- Board function: Clock / Timing
- Architecture standard: AMC
- Power consumption: 1.5 W
- Operating temperature: -20–75 °C
Technical specifications
| Connectors | SMBD-Sub(variant DB-9) |
|---|
| Board function | Clock / Timing |
|---|---|
| Architecture standard | AMC |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 1.5 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Operating temperature | -20–75 °C |
|---|---|
| Storage temperature | -40–95 °C |
| Certifications | ULFCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
