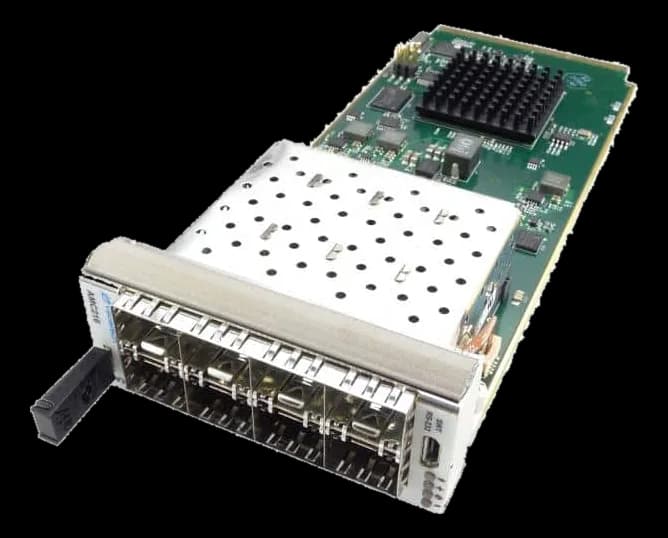

AMC216Managed Layer 2 switch module with front SFP ports
- Manufacturer
AMC216 is an AdvancedMC module conforming to AMC.2 that builds a managed layer 2 Ethernet switch inside an AdvancedTCA or MicroTCA shelf, without taking a system slot with an external device.
The front ports are on SFP cages, while two GbE links stay routed towards the backplane. An RS-232 console on micro USB allows configuration, the LEDs report activity and state and module management follows IPMI. The format is single-module full-size.
At a glance
- Board function: Switch / Fabric
- Architecture standard: AMC.2
- Form factor: Single full-size
- Power consumption: 7 W
Technical specifications
| Ethernet ports | 8× GbE Ethernet ports via front panel SFP2× GbE routed to the rear |
|---|
| Board function | Switch / Fabric |
|---|---|
| Architecture standard | AMC.2AMC |
| Form factor | Single full-size |
| Bus interface | 8× SFP Connectors; Switch RS-232 via Micro USB |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 7 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | CEFCCUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
