MicroTCA Blades & Modules (MTCA.0)

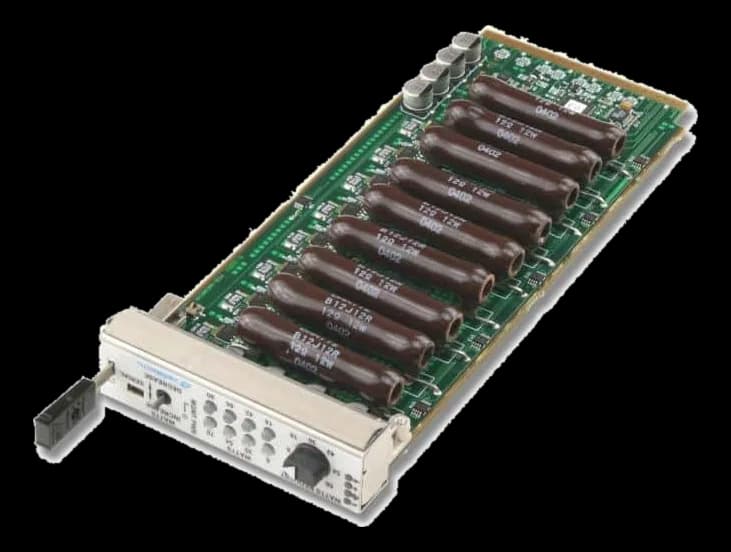

AMC001AMC.0 load module for testing MicroTCA systems
- Manufacturer
AMC001 is a module in AMC.0 format meant for commissioning MicroTCA shelves: in place of an application function it presents an adjustable load and loopback options on the ports, useful for checking power, cooling and fabric routing before a system enters service.
The load drawn reaches 90 W, a figure that defines its use as a test instrument, while management runs over IPMI 2.0 as for every other module in the shelf. Stated storage temperature runs from -40 to 95 °C.
At a glance
- Board function: Development/evaluation
- Architecture standard: AMC
- Form factor: Single mid-size
- Power consumption: 90 W
- Operating temperature: -20–75 °C
Technical specifications
| Board function | Development/evaluation |
|---|---|
| Architecture standard | AMC |
| Form factor | Single mid-size |
| Bus interface | Micro USB or management RS-232 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 90 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Operating temperature | -20–75 °C |
|---|---|
| Storage temperature | -40–95 °C |
| Certifications | CEFCCUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
