MicroTCA Blades & Modules (MTCA.0)

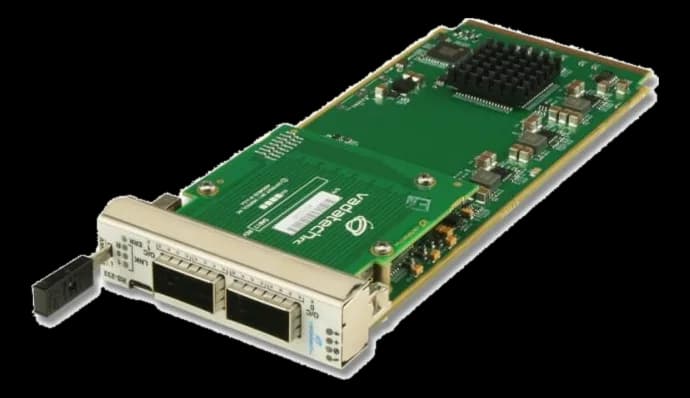

AMC113AMC.1 PCIe bus expansion module on dual QSFP+
- Manufacturer
AMC113 extends the I/O bus of a MicroTCA shelf outwards: the PCIe traffic is carried to two QSFP+ ports on the front panel, over copper or fiber cable, so as to link expansion chassis or remote subsystems without changing the internal topology.
The module conforms to AMC.1, draws 5 W at most with a QSFP cable and states an MTBF of 491,000 hours in the copper version. Storage temperature runs from -40 to 90 °C and software support covers Linux, Windows, Solaris and VxWorks.
At a glance
- Board function: I/O
- Architecture standard: AMC.1
- Power consumption: 5 W
Technical specifications
| Board function | I/O |
|---|---|
| Architecture standard | AMC.1AMC |
| Bus interface | 0 = PCIe x4 (ports 4-7); 1 = PCIe x8 (ports 4-11)Dual QSFP+, RS-232x4 or x8 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 5 W |
|---|
| Dimensions | 73.5 × 181.5 mm |
|---|
| Storage temperature | -40–90 °C |
|---|---|
| MTBF | 491000 h |
| Certifications | FCCCEUL |
|---|
| Operating systems | LinuxWindowsSolarisVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
