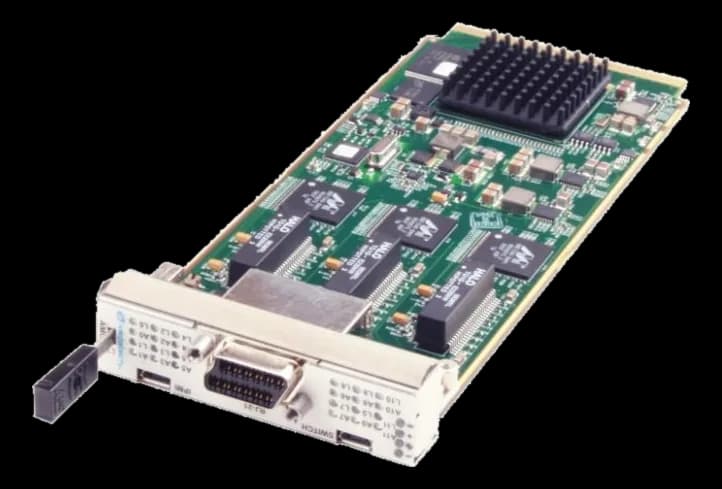

AMC21914-port managed Layer 2 switch in AMC.2 format
- Manufacturer
AMC219 is an AdvancedMC module conforming to AMC.2 that builds a managed layer 2 Ethernet switch into an AdvancedTCA or MicroTCA shelf.
The front ports work at 10/100 Mbit/s, while the ports routed towards the backplane work at 1000 Mbit/s. The switch supports IEEE 802.1Q VLANs and jumbo frames; the module is independent of the operating system and management follows IPMI.
At a glance
- Board function: Switch / Fabric
- Architecture standard: AMC.2
- Power consumption: 7 W
Technical specifications
| Ethernet ports | 14 ports2× GbE ports routed to the rear |
|---|
| Board function | Switch / Fabric |
|---|---|
| Architecture standard | AMC.2AMC |
| Bus interface | MRJ-21 |
| IPMI management | 2.0 |
| Hot-swap | sì(ejector-handle) |
| Power consumption | 7 W |
|---|
| Dimensions | 73.5 × 180.6 mm |
|---|
| Storage temperature | -40–90 °C |
|---|
| Certifications | FCCCEUL |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
