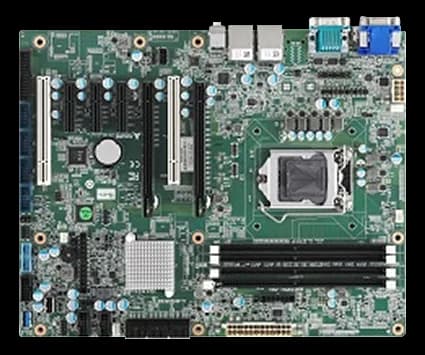

IMB-M45ADLINK industrial motherboard in ATX form factor
- Manufacturer
IMB-M45 is an industrial motherboard in ATX form factor. ATX is the format of the most widespread enclosures and power supplies: the board fits the cabinets already in use, keeps the usual layout of mounting holes and I/O panel, and does not force a redesign of the system mechanics.
Compared with an office board, an industrial motherboard is meant for continuous service and for integration: processor, memory and heatsink are chosen at configuration time, according to the load and to the cabinet temperature. Electrical and I/O characteristics are listed in the product datasheet.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 9th gen (Coffee Lake-R)
- Processor: LGA 1151 socket supports 8th/9th Gen. Intel Core i9/i7/i5/i3 · CPU preferred: E-2278GE: 8C, 3.3GHz, 80W · E-2226GE: 6C, 3.4GHz, 80W · i7-9700E: 8C, 2.6GHz, 65W · i5-9500E: 6C, 3.0GHz, 65W · i3-9100E: 4C, 3.1GHz, 65W
- CPU TDP: 65–80 W
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | C246 |
| CPU class | Intel Core i3/i5/i7/i9 |
| CPU generation | 9th gen (Coffee Lake-R)8th gen (Coffee Lake) |
| Processor | LGA 1151 socket supports 8th/9th Gen. Intel Core i9/i7/i5/i3 · CPU preferred: E-2278GE: 8C, 3.3GHz, 80W · E-2226GE: 6C, 3.4GHz, 80W · i7-9700E: 8C, 2.6GHz, 65W · i5-9500E: 6C, 3.0GHz, 65W · i3-9100E: 4C, 3.1GHz, 65W |
| CPU TDP | 65–80 W |
| CPU frequency | 2.6–3.4 GHz |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | 4x DIMM DDR4-2666 / 2400 MHz, max 128GB |
| Storage | 6x SATA3 (support RAID 0,1,5,10) |
|---|
| Video outputs | VGA, DP, HDMI |
|---|
| USB ports | 4x USB 3.1 Gen2 connectors (rear) · 2x USB 3.1 Gen1 via header · 1x USB 3.1 Gen1 (vertical type A connector) · 6x USB 2.0 via header · 1x USB 2.0 (vertical type A connector) |
|---|---|
| Audio | Audio (connettore su I/O shield) |
| Digital I/O | DIO |
| Ethernet ports | 2 x GbE |
| Serial interfaces | 2 x RS-232/422/485 · 4 x RS-232 |
| Other I/O | PS2 combo · LPT |
| Form factor | ATX |
|---|
| Expansion | 1x PCI-E x16 or 2x PCI-E x8 + 3x PCI-E x4 · 2x PCI |
|---|
| Dimensions | 12″ × 9.6″ |
|---|
| Operating systems | WindowsLinux |
|---|
| Ethernet ports | 1 GbE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
