Industrial Desktop Motherboards – ATX

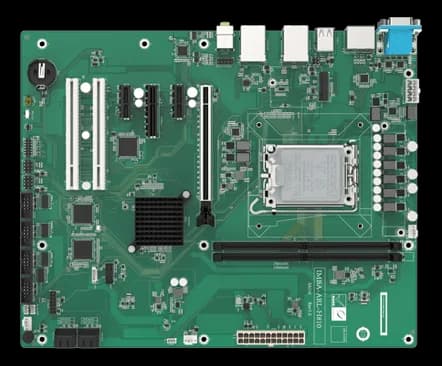

IMBA-ARL-H810-R10ATX LGA1851 motherboard for Intel Core Ultra Series 2, with PCIe Gen5 and PCI slots
- Manufacturer
The IMBA-ARL-H810-R10 forms the base of industrial control systems and workstations assembled in standard chassis: it is powered from ATX/AT, supports AT mode and is ErP/EuP compliant, with a socket that accepts CPUs up to 65 W TDP.
The new-architecture Intel Xe graphics engine adds SRIOV and Genlock and drives three independent displays, where several video surfaces must be synchronised from a single machine. The rest is industrial build: AMI UEFI BIOS, onboard hardware monitor and programmable software watchdog from 1 to 255 seconds with system reset.
At a glance
- DDR5 memory up to 128 GB
- PCIe x16 slot with Gen5 signal
- Two PCI slots for acquisition cards
- RAID 0/1/5/10 on the SATA ports
Technical specifications
| TPM | Header (provision) |
|---|---|
| BIOS | AMI UEFI BIOS |
| CPU generation | Core Ultra Series 2 |
| Processor | LGA1851 High-Performance Intel® Core™ Ultra (Series 2) |
| Watchdog | Software Programmable support 1~255 sec. System reset |
| CPU TDP | 65 W |
| Graphics | New Intel® Xe Graphics architecture with SRIOV, Genlock |
| RAM type | DDR5 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | DIMM DDR5 288-pin 5600 MT/s |
| Storage | 4× SATA : 4× SATA 6Gb/s |
|---|
| Video outputs | Support DisplayPort, HDMI and iDPM · 1× Display Port 1.4 (up to 4K@60Hz) |
|---|
| USB ports | 4× Internal USB 2.0 : 2x4 pin, P=2.002× External USB 3.2 Gen2x1 : Type-A, 10Gb/s |
|---|---|
| Audio | 2× Audio Jack (Line-out, Mic-in) on rear IO · HD Audio : Realtek ALC888S HD codec |
| Digital I/O | 1× DIO : 12-bit digital I/O (2x7 pin) |
| Ethernet ports | Two RJ45 network ports are provided via Intel® I226-LM and I226-V 2.5GbE network controller to achieve up to 2.5GbE network transmission rateSupport Dual Intel® I226V/I219 LM 2.5GbE controller |
| Serial interfaces | 2× External RS-232/422/485 : RS-485 support AFC4× Internal RS-232 : 2x5 pin, P=2.54 |
| Other I/O | 1× Chassis intrusion (1x2 pin) |
| Supply voltage | ATX/AT power supply |
|---|
| Weight | 0.7–1.2 kg |
|---|---|
| Dimensions | 244mm x 305mm |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | -10–60 °C |
| Certifications | CEFCC |
|---|
| Ordering variants | 2× SATA cable |
|---|---|
| Cooling | Fan (active) |
| RAID | RAID 0RAID 1RAID 10RAID 5 |
| Sensors | HW Monitor |
| Security & watchdog | Software Programmable support 1~255 sec. |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
