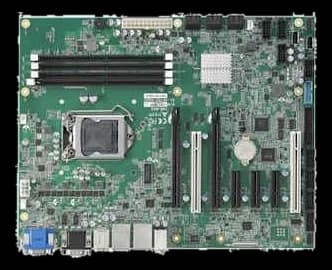

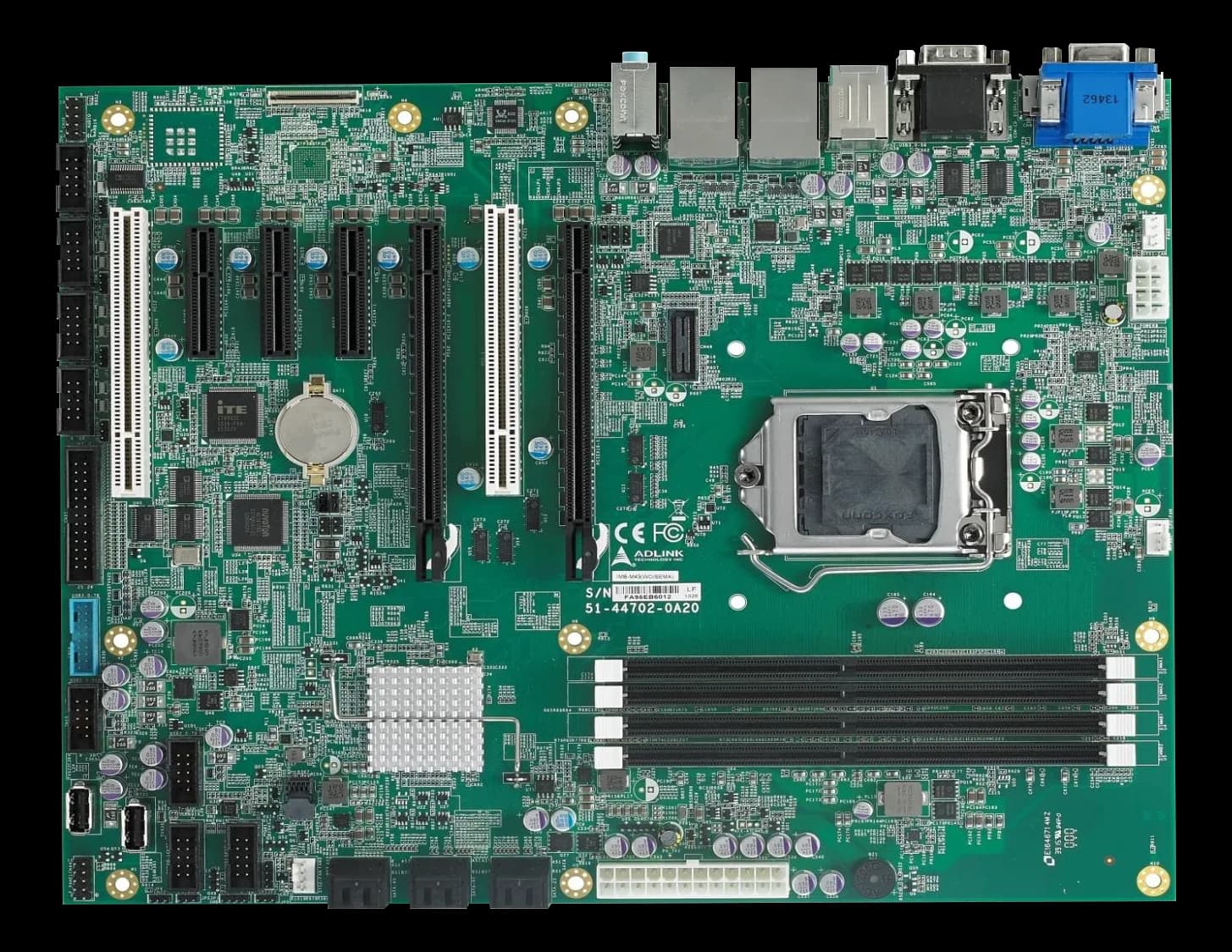

IMB-M43Industrial ATX motherboard with Intel Q170 chipset and LGA1151 socket
- Manufacturer
IMB-M43 is an industrial ATX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake), with TDP up to 65 W. Memory reaches 64 GB.
Expansion offers PCIe x16, PCIe x8, PCIe x4 and PCI slots. Video outputs cover VGA and DisplayPort. Storage covers SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
- Watchdog: sì
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | Q170 |
| CPU class | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| BIOS | AMI® UEFI BIOS, 128 Mb SPI Flash Memory |
| CPU generation | 7th gen (Kaby Lake)6th gen (Skylake) |
| Processor | Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) |
| Watchdog | sì |
| CPU TDP | 65–65 W |
| CPU cores | 2–4 |
| CPU threads | 2–700 |
| Graphics | Integrated Intel®HD Graphics series (based on CPU) |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 64–64 GB |
| Memory | Four 288 PIN DDR4 Sockets (vertical type) · Dual channel DDR4 2133/2400 MHz, up to 64 GB |
| Storage | 6x SATA 6.0 Gb/s connectors Software RAID support 0/1/5/10 |
|---|
| Video outputs | 1x VGA connector (rear), resolution up to 1920 x 1200 @ 60 Hz · 2x DP connector (rear), resolution up to 4096 x 2304 @ 60 Hz |
|---|
| USB ports | 6x USB 3.0 connectors (rear) 2x USB 3.0 pin headers 4x USB 2.0 pin headers 2x USB 2.0 (vertical type A connector) |
|---|---|
| Audio | Realtek®ALC262-VC2-GR · 1x Mic-in, 1x Line-out and 1x Line-in connector (rear) |
| Digital I/O | 1x 10-pin/2.54mm GPIO pin header: 4 in and 4 out, one ground pin and one power pin (5V/12V/no power, jumper selected) |
| Ethernet ports | LAN1: Intel®I219-LM via RJ45 connector (rear) LAN2: Intel® I211-AT via RJ45 connector (rear) · LAN1 and LAN2 support |
| Serial interfaces | 2x RS-232/422/485 with auto flow control connector (rear) 4x RS-232 pin headers · PS/2 combo, LAN2, Line In, VGA, COM1, LAN1, Line out, 2x DP, 6x USB3.0, COM2, Mic In |
| Other I/O | 1x LPT pin header · 1x PS/2 keyboard & Mouse connector (rear) |
| Form factor | ATX |
|---|
| Expansion | If PEG3 is occupied, PEG1 is PCIex8 Gen3, PEG2 is PCIex4 Gen3, and PEG3 is PCIex4 Gen3 If PEG3 is not occupied and PEG2 is occupied, PEG1 is PCIex8 Gen3, PEG2 is PCIex8 Gen3, and PEG3 is no signal If PEG3 is not occupied and PEG2 is not occupied, PEG1 is PCIex16 Gen3, PEG2 and PEG3 is no signal PCIe1: PCIe x4 Gen3, PCIe2: PCIe x4 Gen3, PCI1: PCI 2.2, PCI2: PCI 2.2 <Physical Slot> PEG1: PCIex16 slot, PCI1: PCI slot, PEG2: PCIex16 slot, PEG3: PCIex4 slot, PCIe1: PCIex4 slot, PCIe2: PCIex4 slot, PCI2: PCI slot |
|---|
| Dimensions | 305 × 244 |
|---|---|
| Other features | CPU voltage +3.3 V voltage +5 V voltage +12 V voltage CPU temperature System temperature CPU fan speed System fan speed · LAN1 Support |
| Storage temperature | -40–85 °C |
|---|---|
| Operating temperature | 0~60 |
| Certifications | FCCCE |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
