Industrial Workstations with Motherboard

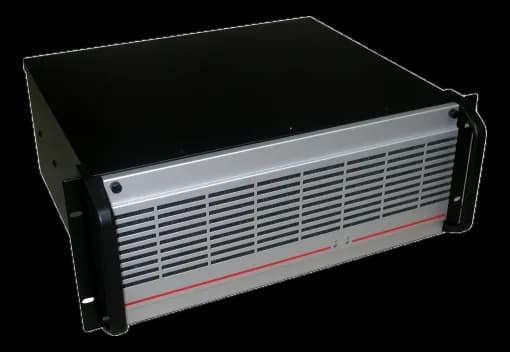

GOI-405-WS4U rack chassis 355 mm deep with concealed drives
- Manufacturer
GOI-405 is a four rack unit chassis in cold rolled steel of limited depth, suited to the shallow cabinets of technical rooms and industrial panels.
The internal bays take a 5.25" optical drive and two 3.5" drives not accessible from outside, a choice that reduces tampering on equipment installed in shared environments. The air filter is washable and pulls out from the front door, while the rear bay accepts a single ATX power supply or a mini redundant one.
At a glance
- Storage: 1 x 5.25” + 2 x 3.5”
- Motherboard form factor: E-ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 1 x 5.25” + 2 x 3.5” |
|---|
| Other I/O | Fronte: Pannello frontale colore silver - filtro incluso 2 x USB · Retro: Alloggiamento per 7 schede full height |
|---|
| Motherboard form factor | E-ATXATX |
|---|---|
| Number of slots | 7 |
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis color | Nero e silver |
| Dimensions | Chassis 4U - 483 x 177 x 355 mm |
| Chassis material | Acciaio pre-zincato |
| Front panel buttons | Power On/Off, System Reset |
| Cooling | Fan (active) |
|---|
| Power input | Alimentatore PS2 Singolo Alimentatore Miniredundant |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
