GO-210ATX-IPC2U ATX rack chassis, 450 mm deep, in pre-galvanized steel
- Manufacturer
- Configurations
- 2 available configurations

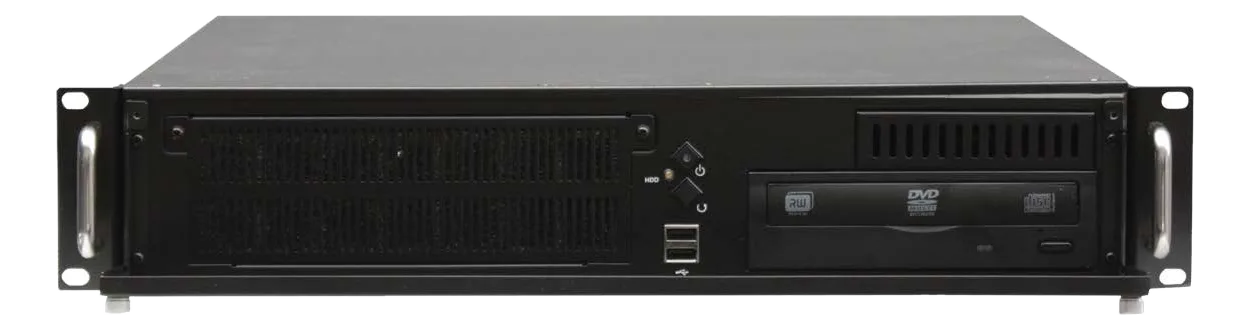

GO-210ATX is a two rack unit chassis for 19 inch cabinets, made of pre-galvanized steel and sized for ATX motherboards up to 12" x 9.6".
The internal bays take optical drives and disk drives in full size and slim format, with three internal 3.5" positions. The front panel is protected by a captive screw door and carries two USB connectors, the status LEDs and the power and reset buttons; the rear houses three full size brackets.
At a glance
- Motherboard form factor: ATX
- Number of slots: 3
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~50
Technical specifications
| Storage | 1 x 5.25” slim + 1 x 3.5” + 3 x 3.5” interni(3.5-SATA) |
|---|
| Other I/O | Fronte: Porta con viti imperdibili, 2 x USB · Retro: Alloggiamento per 3 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 3 |
| Rack units | 2 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 2U - 483 x 88 x 450 mm |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

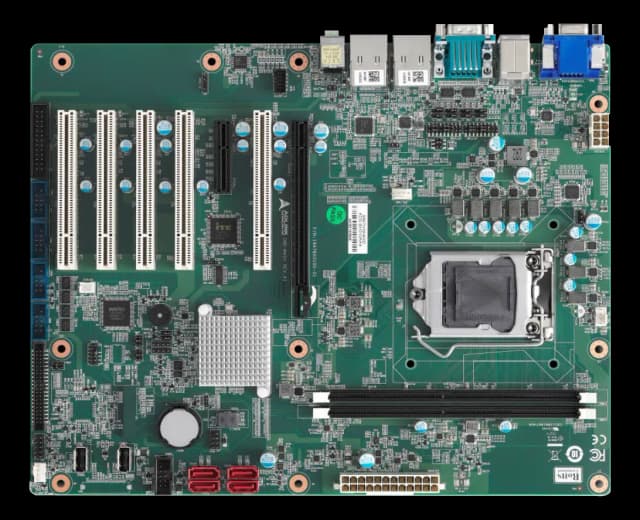

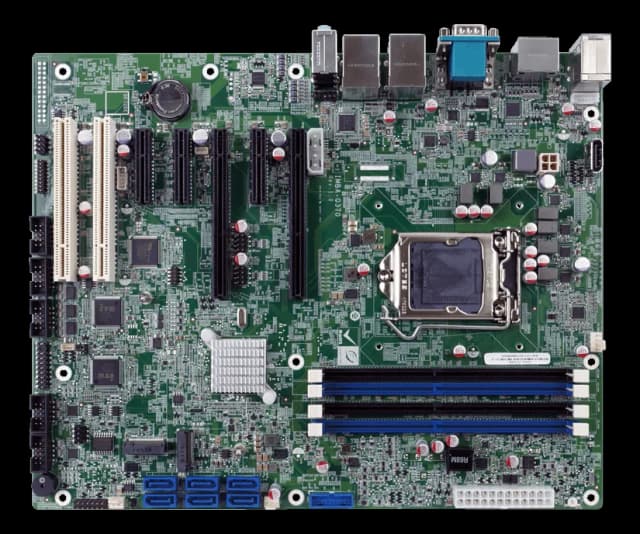

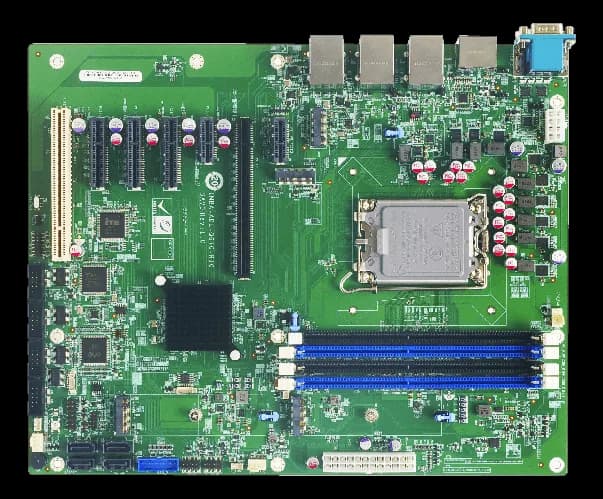

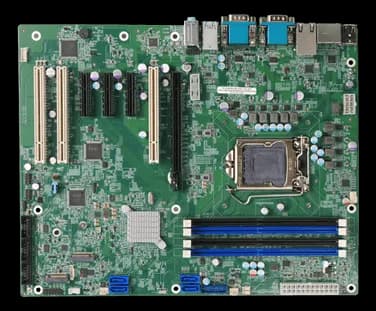

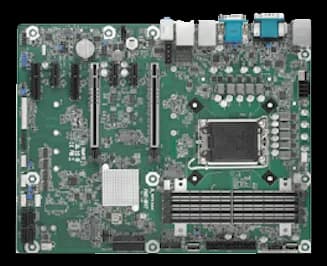

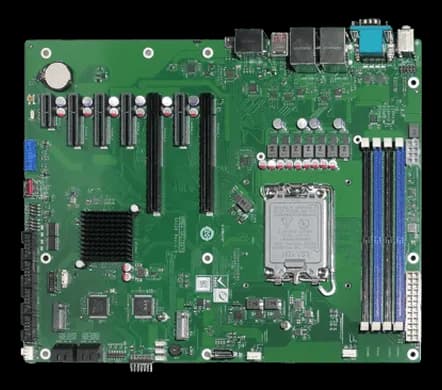

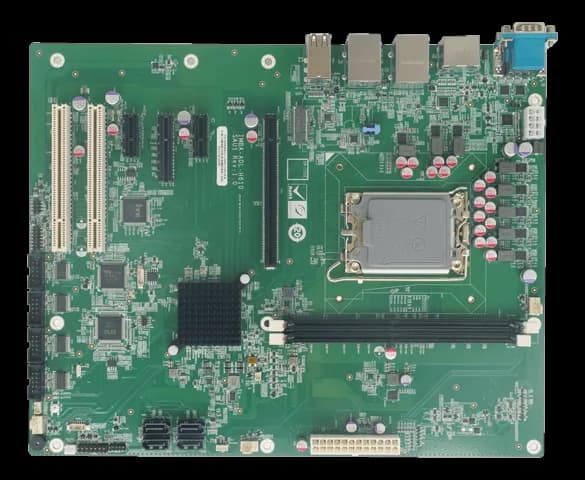

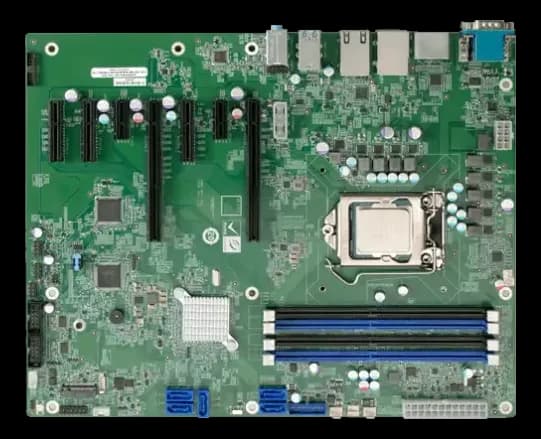

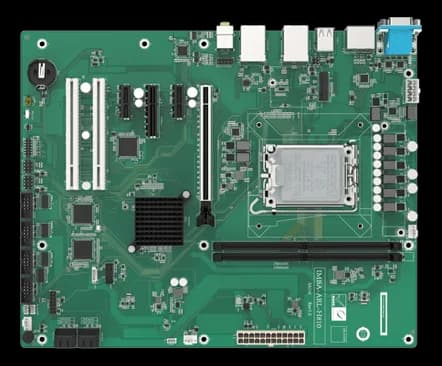

Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-210-7TH |
| GO-210R-7TH |

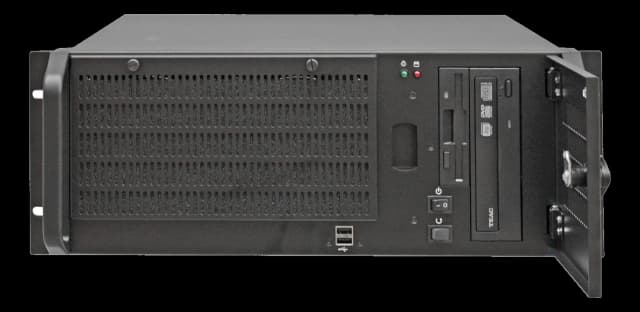

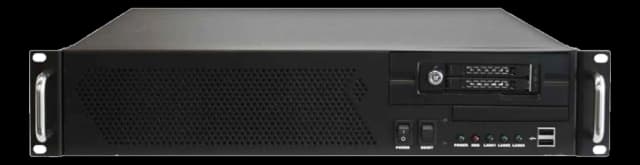

In the same family
