Industrial PCs with Motherboard
GO-414ATXR-IPCRack workstation with dual key-lock doors and a washable air filter
- Manufacturer
- Configurations
- 1 available configurations

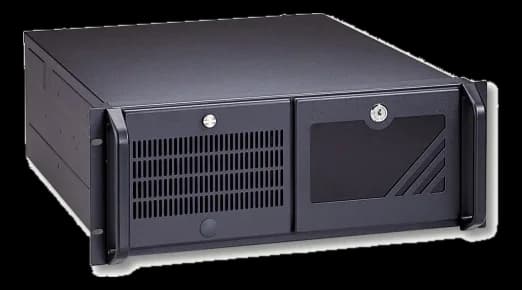

GO-414ATX is an industrial rack cabinet workstation for dusty environments: the front is closed by two doors with a lock and a knurled screw and holds a washable air filter, which pulls out without dismantling the machine.
The steel chassis takes motherboards for Pentium 4, dual Xeon, Athlon 64 and dual Opteron, with three 5.25 inch bays and a 3.5 inch floppy. Cooling starts from a 120 mm fan and a mounting position is provided for a second fan of the same diameter. The ATX power supply is optional, in single or redundant version. The chassis measures 483 × 177 × 510 mm.
At a glance
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~50
Technical specifications
| Storage | 3x 5.25" CD-ROM & 1x 3.5" FDD &(3.5-SATA) |
|---|
| Other I/O | Fronte: Porta drives con serratura, 2 USB · Retro: Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–700 W(optional) |
|---|
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 510 mm |
| Front panel buttons | Power On/Off e System Reset |
| Other features | Struttura per drives ammortizzata Barra di ritenzione schede ad altezza regolabile |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | 1 filtro per l’aria rimovibile dal fronte |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-414ATX-W-PF |
