GOI-3F1-R3-IPC3U rack chassis with removable drives and a 24/48 VDC input on the front
- Manufacturer
- Configurations
- 2 available configurations

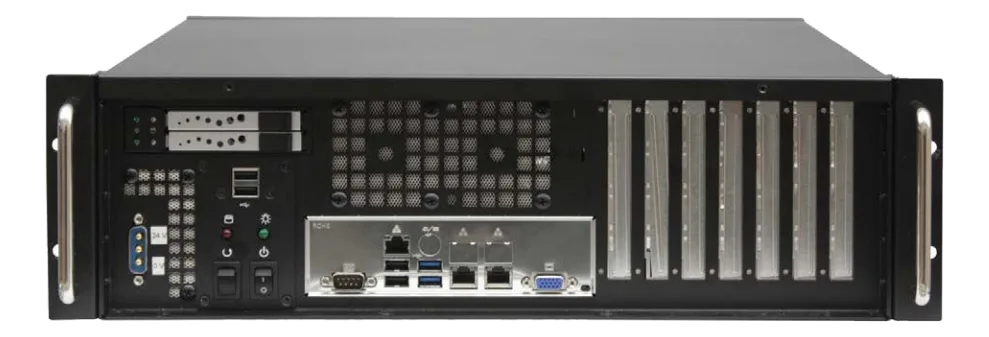

GOI-3F1-R3 is a three rack unit chassis in pre-galvanized steel for 19 inch cabinets where the cabling arrives at the front: on the front, next to the two USB, is the 3W3 input for the DC power supply at 24 or 48 V.
The chassis takes an ATX motherboard up to 12″ × 9.6″ and seven full size brackets; two 2.5″ drives pull out from the front and one stays internal. Two 90 mm fans run at 34 dB each.
At a glance
- Storage: 2 x 2.5” HDD/SSD estraibili + 1 x 2.5” interno
- Motherboard form factor: ATX
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~40
Technical specifications
| Storage | 2 x 2.5” HDD/SSD estraibili + 1 x 2.5” interno |
|---|
| Other I/O | Fronte: 2 x USB 3.0 + 3W3 power input per PSU 24/48VDC Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|
| Rack units | 3 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 3U - 483 x 133 x 400 mm |
| Front panel buttons | Power On/Off Momentary e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~40 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

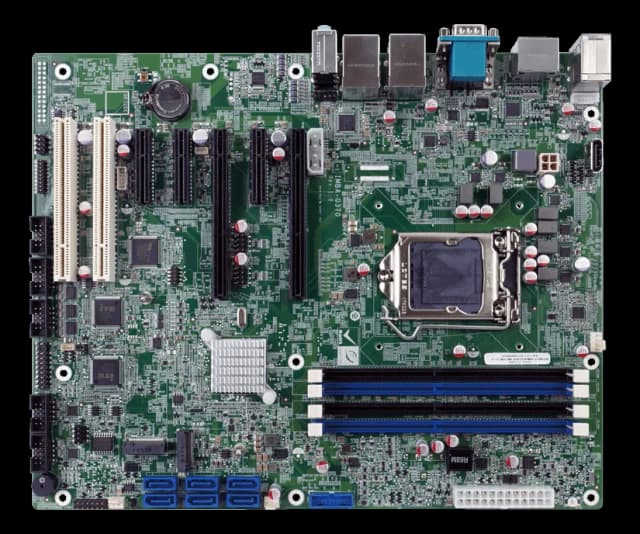

Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GOI-3F1ATXR-PF |
| GOI-3F1ATXR-PF-USB2 |
