Industrial PCs with Motherboard
GO-M41ATX-IPC4U rack chassis with a 7 inch TFT display and keyboard
- Manufacturer
- Configurations
- 1 available configurations

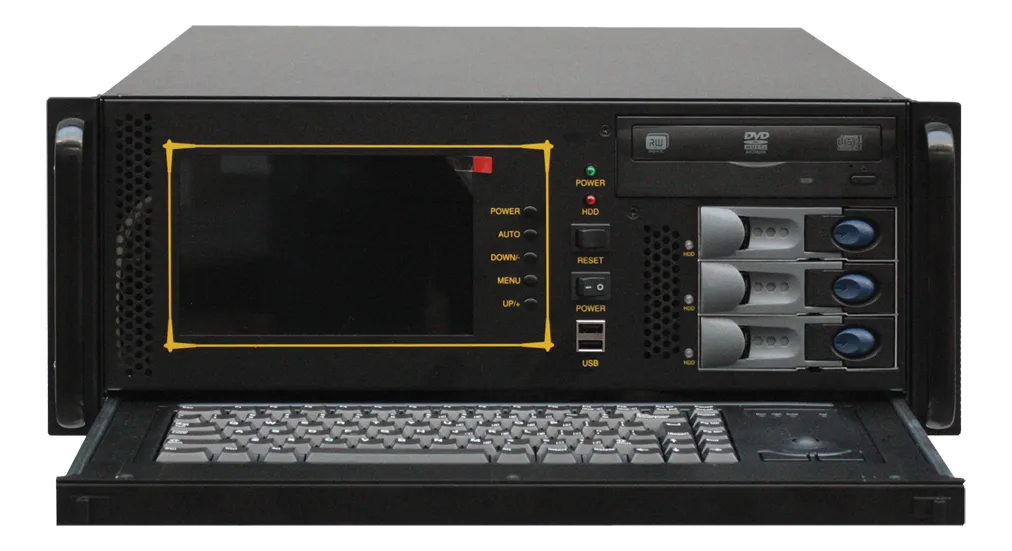

GO-M41ATX is a four rack unit chassis in cold rolled steel that integrates the service console: the front carries a TFT display, a keyboard with trackball and two mouse buttons, so the system can be operated without connecting external peripherals.
The display has a resolution of 800 x 480 pixels and brightness adjustment is handled by a dedicated key, next to the power and system reset buttons. The internal bay takes a 5.25" optical drive and the rear bay accepts a single ATX power supply or a mini redundant one.
At a glance
- Storage: 1x 5.25” & 3x 3.5” Swappable Trays & 3x 3.5”HDD
- Keyboard & pointing device: 83/84 tasti US, trackball
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
Technical specifications
| Storage | 1x 5.25” & 3x 3.5” Swappable Trays & 3x 3.5”HDD |
|---|
| Integrated display | 7" TFT (800 x 400) |
|---|
| Other I/O | Fronte: 2 x USB · Retro: Alloggiamento per 7 bracket full height |
|---|---|
| Keyboard & pointing device | 83/84 tasti US, trackball |
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–700 W(optional) |
|---|
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 510 mm |
| Front panel buttons | Power On/Off, System Reset, Display menu |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | 1 filtro per l’aria rimovibile dal fronte |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-M41ATX-PF |
