Industrial PCs with Motherboard

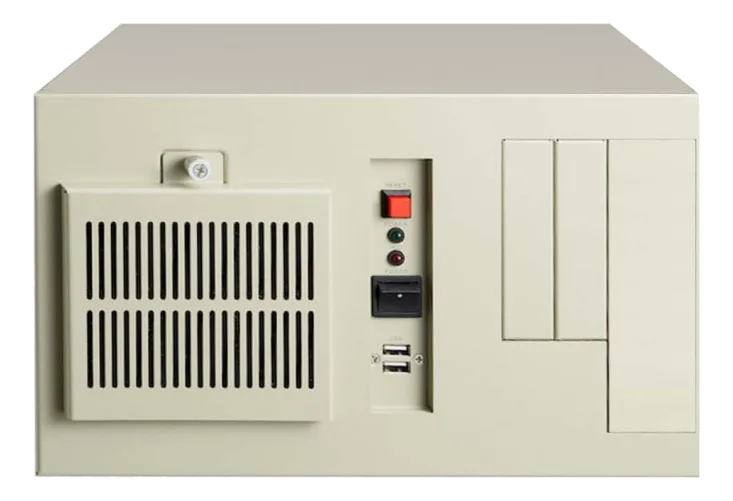

GO-609MB-IPCBeige industrial PC node for wall or panel mounting, 7 full size brackets
- Manufacturer
GO-609MB is an industrial enclosure in pre-galvanized steel for wall or panel installations, where there is no rack cabinet: the air filter slides out from the front and is washable.
The chassis holds an ATX motherboard up to 12″ × 9.6″ and seven full size brackets; on the front, two USB and the power, reset and ATX power controls. A 120 mm fan cools the interior and the bays take one 5.25″ up to 150 mm, two external 3.5″ and one internal.
At a glance
- Storage: Esterni: 1 x 5.25” max 150 mm, 2 x 3.5″ ; Interni: 1 x 3.5″ | Per i dispositivi più profondi verificare i componenti lato motherboard
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Panel Mount
- Cooling: Fan (active)
Technical specifications
| Storage | Esterni: 1 x 5.25” max 150 mm, 2 x 3.5″ ; Interni: 1 x 3.5″ | Per i dispositivi più profondi verificare i componenti lato motherboard |
|---|
| Other I/O | Fronte: 2 x USB · Retro: Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| Mounting | Panel MountWall Mount |
|---|---|
| Chassis material | Acciaio pre-zincato |
| Chassis color | Beige |
| Dimensions | 330 x 196 x 406 mm |
| Front panel buttons | Power On/Off, System Reset, Switch power ATX |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | 1 filtro per l’aria rimovibile dal fronte lavabile |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
