Industrial Desktop Motherboards – ATX

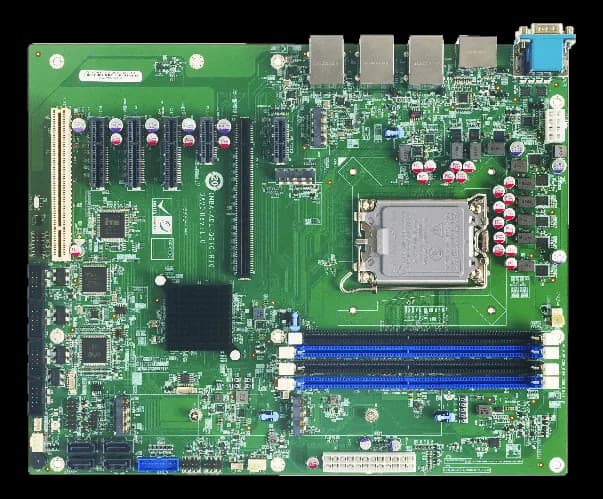

IMBA-ADL-Q670Industrial ATX motherboard with LGA1700 socket and Intel Q670 chipset
- Manufacturer
- Configurations
- 1 available configurations
The board takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors of the 12th, 13th and 14th generation with TDP up to 125 W; memory runs on four dual-channel DIMMs at 3200 MHz and the integrated graphics is Intel UHD Graphics.
The video section drives three independent displays over DisplayPort 1.4a, HDMI and the iDPM connector; networking offers two Intel 2.5GbE ports. Storage covers four SATA channels with RAID 0/1/5/10 and two M.2 M key slots with NVMe support; expansion includes a PCIe x16 Gen4 slot, three open-end PCIe x4 and a PCI slot.
The printed circuit board measures 244 × 305 mm; the declared operating range is -10~60 °C, with CE and FCC compliance.
At a glance
- CPU socket: LGA1700
- CPU class: Intel Celeron/Pentium
- TPM: PTT / fTPM (firmware)
- CPU generation: 12th gen (Alder Lake)
- Processor: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Technical specifications
| CPU socket | LGA1700 |
|---|---|
| Chipset | Q670Q670E |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | PTT / fTPM (firmware) |
| BIOS | AMI UEFI BIOS |
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R) |
| Processor | LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU) |
| Watchdog | Yes(sec · 1-255) |
| CPU TDP | 125 W |
| Graphics | Intel® UHD Graphics |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 128 GB |
| Memory | Four 288-pin3200 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB |
| Storage | 4 x SATA : RAID 0/1/5/10 supported |
|---|
| Video outputs | 1 x iDPM : support iEi eDP/ LVDS/ VGA module1 x Display Port : up to 4096 x 2304 @60Hz1 x DP 1.4a (up to 4096 x 2304 @60Hz)(DisplayPort) |
|---|
| USB ports | 4 x USB 3.2 Gen2 (Type-A) (10Gb/s)2 x USB 3.2 Gen1 (2 x 10pin P=2.00 pin wafer ) (5Gb/s)2 x Internal USB 3.2 Gen1x1 : 2 x 10 pin, P=2.00 pin wafer (5Gb/s)4 x Internal USB 2.0 : 2 x 4 pin, P=2.544 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A)4 x USB 2.0 (2x4 pin, P=2.54)2 x USB 3.2 Gen1 (Type-A) (5Gb/s) |
|---|---|
| Audio | 1 x Front Panel (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| Digital I/O | 1 x 12-bit digital I/O (2x7 pin)(bidir) |
| Ethernet ports | 2 x LAN -LAN1: Intel® I226LM 2.5GbE controllerLAN2: Intel® I226V 2.5GbE controller (CO-LAY I226LM support vPro) |
| Serial interfaces | 2 x External RS-232/422/485 : RS-485 support AFC4 x Internal RS-232 : 2 x 5 pin, P=2.54 |
| Other I/O | 1 x SMBus (1x4 pin) |
| Form factor | ATX |
|---|
| Expansion | 1 x M.2 M key 2242/80 (PCIe Gen3 x4)2 x PCIe x1 (Gen3)1 x PCIe x16 (Gen4 slot with x16 Signal)1 x PCI Slot1 x M.2 M key 2242/80 (PCIe Gen3 x2) |
|---|
| Weight | 0.7 kg1.2 kg(net) |
|---|---|
| Dimensions | 244 × 305 mm |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | -10–60 °C |
| Certifications | CEFCC |
|---|
| Ethernet ports | 2.5 GbE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible systems
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| IMBA-ADL-Q670-R11 |
