Industrial PCs with Motherboard
GOI-252H-IPC2U rack chassis for ATX motherboards, with a riser on the seventh slot
- Manufacturer

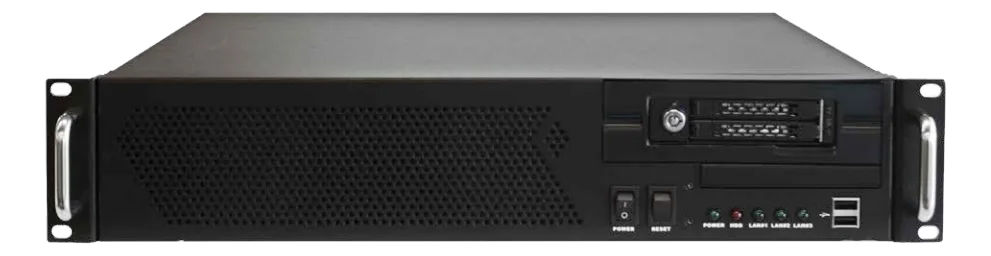

GOI-252H is a two rack unit chassis in pre-galvanized steel for 19 inch cabinets, 355 mm deep.
The rear panel is prepared for the riser on the seventh slot and houses three full size brackets around an ATX motherboard up to 12″ × 9.6″; the front combines a 5.25″, a slim 3.5″ and two USB, with an internal drive. An 80 mm fan draws air in from the front through the air filter, with a second one on request.
At a glance
- Storage: 1 x 5.25” + 1 x 3.5” slim; 1 x 3.5” interno
- Motherboard form factor: ATX
- Number of slots: 3
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 1 x 5.25” + 1 x 3.5” slim; 1 x 3.5” interno |
|---|
| Other I/O | Fronte: 2 x USB · Retro: Pannello per riser 7° slot · Alloggiamento per 3 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 3 |
| Rack units | 2 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 2U - 483 x 88 x 355 mm |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | Filtro per l’aria |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
