Industrial Workstations with Motherboard
GO-380-WSRack workstation with twelve removable drive trays and seven full length slots
- Manufacturer
- Configurations
- 2 available configurations

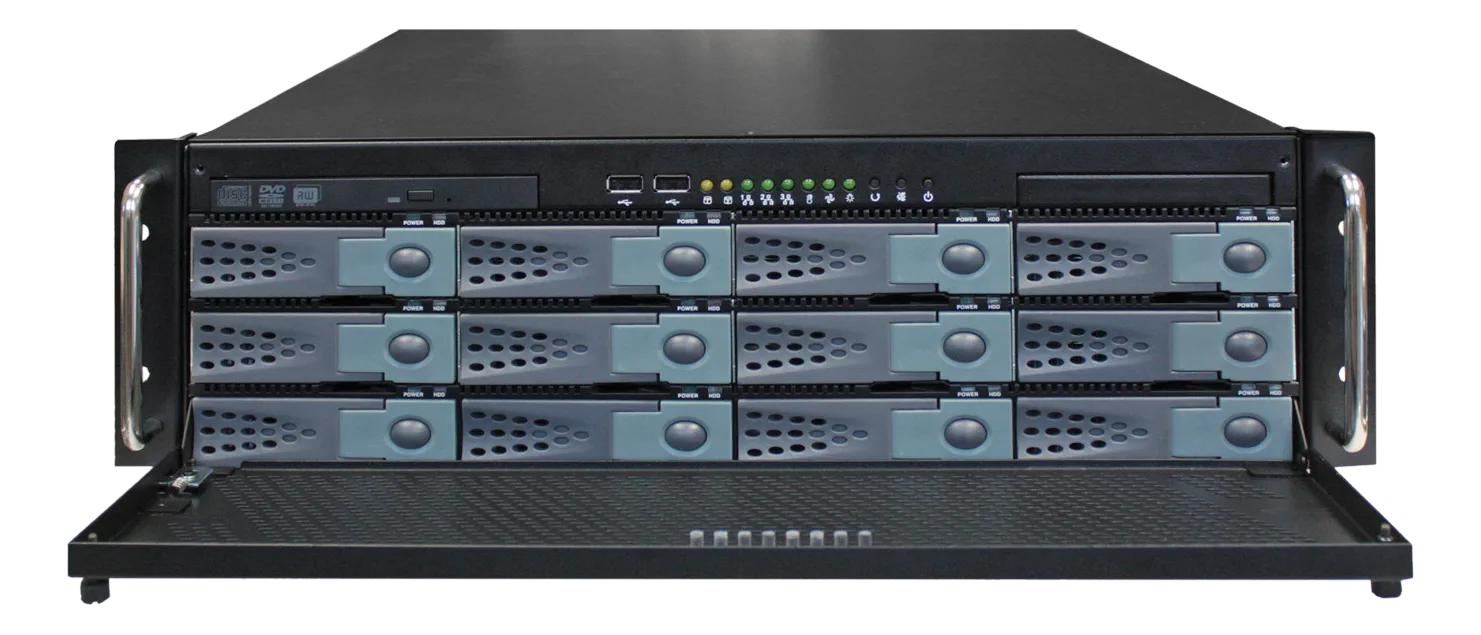

GO-380 is an industrial rack cabinet workstation meant for storage: twelve removable trays on the front allow a drive to be replaced without opening the chassis, with PATA, SATA, SCSI320, Multilane SATA or SAS interfaces.
Expansion counts seven full length slots and cooling relies on four 92 mm fans; a front door with two knurled screws protects the trays. The LEDs signal power, drive activity, fan status, temperature and network. The chassis measures 483 × 133 × 650 mm and takes motherboards for Pentium 4, dual Xeon, Athlon 64 and dual Opteron.
At a glance
- Storage: PATA, SATA, SCSI320, Multilane SATA or SAS
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | PATA, SATA, SCSI320, Multilane SATA or SAS1x Slim CD-ROM & 1x Slim FDD & 12x 3.5" Swappable Trays & 2x 2.5" HDD & 2x 3.5" HDD(optional · 2.5-SATA) |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–950 W(optional) |
|---|
| Rack units | 3 |
|---|---|
| Mounting | Rack Mount |
| Chassis color | Nero |
| Dimensions | Chassis 3U - 483 x 133 x 650 mm |
| Chassis material | Acciaio pre-zincato |
| Front panel buttons | Power On/Off Momentary, System Reset, Buzzer Reset |
| Cooling | Fan (active) |
|---|
| Storage temperature | -20–70 |
|---|---|
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-380-SAS |
| GO-380-SATA |
