GO-4F1ATXR-IPCShallow-depth rack workstation with two fans
- Manufacturer
- Configurations
- 1 available configurations

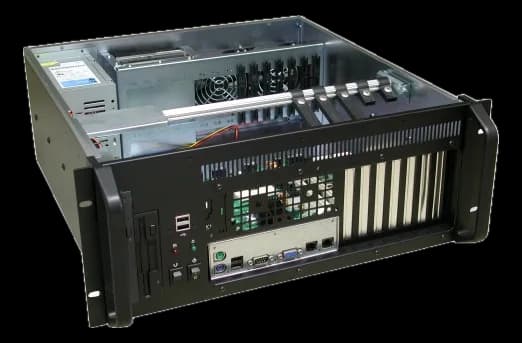

GO-4F1ATXR is an industrial rack cabinet workstation with a 483 × 177 × 447 mm chassis: the shallow depth suits it to narrow cabinets and to panels where the rear must stay accessible.
The steel chassis takes motherboards for Pentium 4, dual Xeon and Athlon 64, with a slim optical drive and a 3.5 inch floppy. Cooling relies on two 90 mm fans, and the front panel carries two USB ports, the power and drive activity LEDs and the power and reset controls. The permitted humidity runs from 5 to 95%.
At a glance
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
- Operating temperature: 0~45
Technical specifications
| Storage | 1x Slim CD-ROM & 1x 3.5" FDD &(3.5-SATA) |
|---|
| Other I/O | Fronte: 2 x USB 3.0 Alloggiamento per 7 bracket full height e I/O motherboard |
|---|
| Motherboard form factor | ATXE-ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–700 W(optional) |
|---|
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 447 mm |
| Front panel buttons | Power On/Off Momentary (Rocker) e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~45 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-4F1ATXR-PF |
