GO-212-IPC2U steel rack chassis with locking front door
- Manufacturer

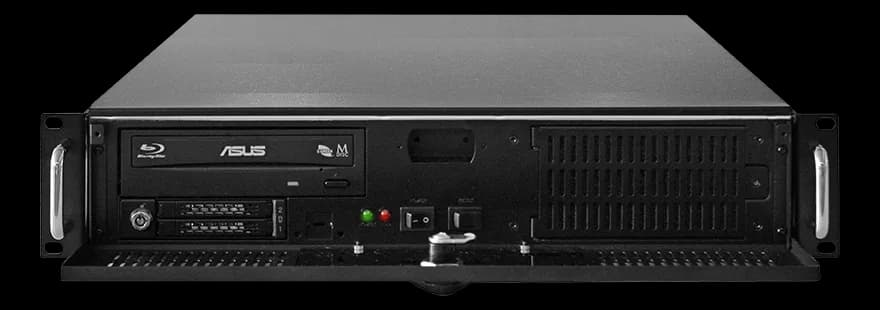

GO-212-7VLP-USB30 is a two rack unit chassis in cold rolled steel, intended for equipment installed in a cabinet. The front door with snap lock protects the drive bays and the washable air filter housed behind the panel.
The internal bay takes a 5.25" optical drive, a 3.5" floppy and two drives, while expansion happens on horizontal slots served by a riser board. The rear bay accepts an optional ATX power supply in PS/2 format.
At a glance
- Storage: 1 x 5.25” + 1 x 3.5” + 2 x 3.5” interni
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 1 x 5.25” + 1 x 3.5” + 2 x 3.5” interni |
|---|
| Other I/O | Fronte: Porta singola con serratura, 2 x USB 3.0 · Retro: Alloggiamento per 7 bracket low profile |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 460 W(optional) |
|---|
| Rack units | 2 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero |
| Dimensions | Chassis 2U - 483 x 88 x 501 mm |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | Filtro per l’aria all’interno del pannello frontale lavabile |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

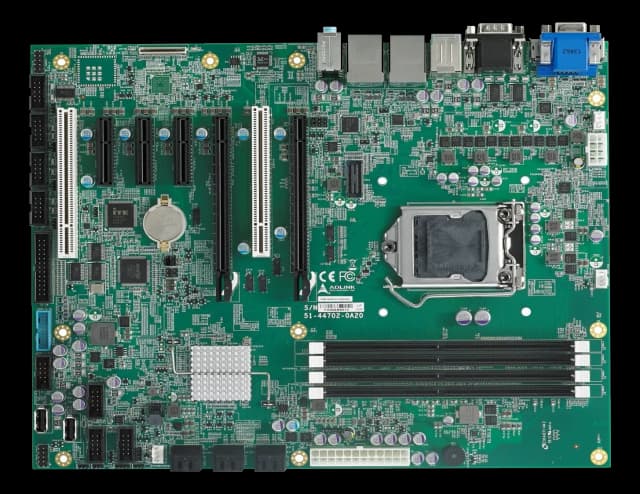

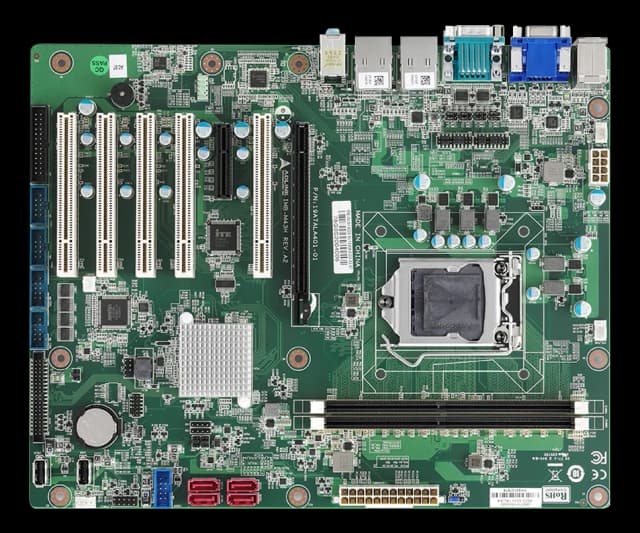

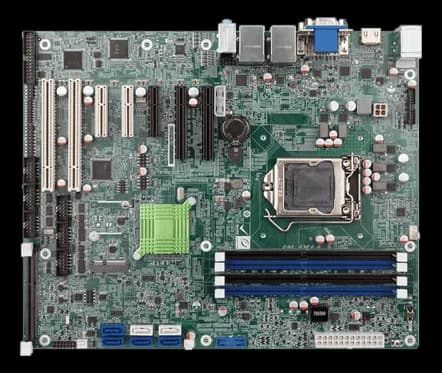

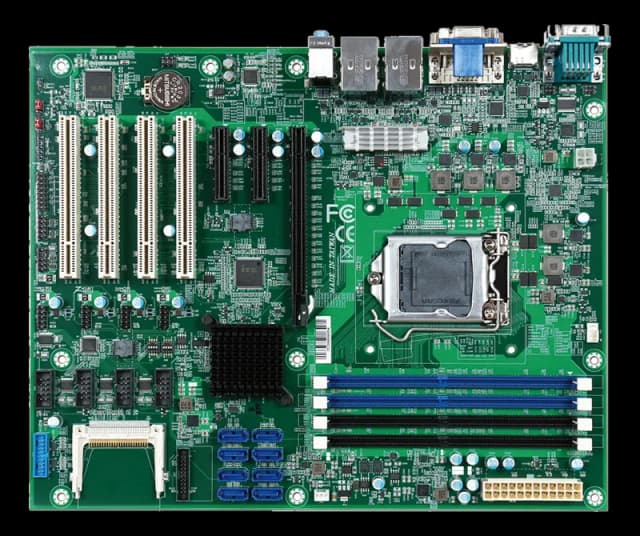

Compatible boards
