Industrial PCs with Motherboard
GO-411ATXR-IPC4U rack chassis for a passive backplane or ATX motherboards
- Manufacturer

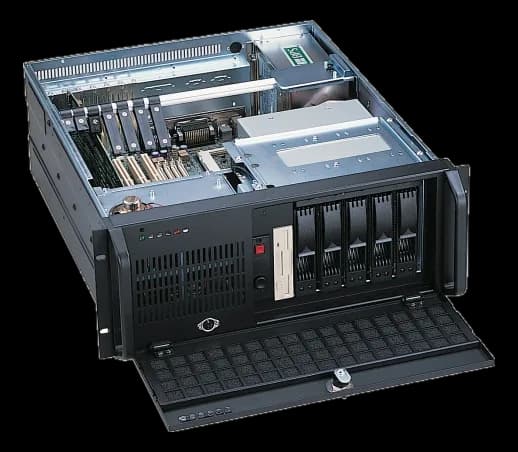

GO-411ATXR is a four rack unit chassis compliant with the EIA RS-310C mounting standard, made of cold rolled steel. It accepts ATX motherboards up to 12" x 9.6" or a passive backplane, covering both single board and bus architectures.

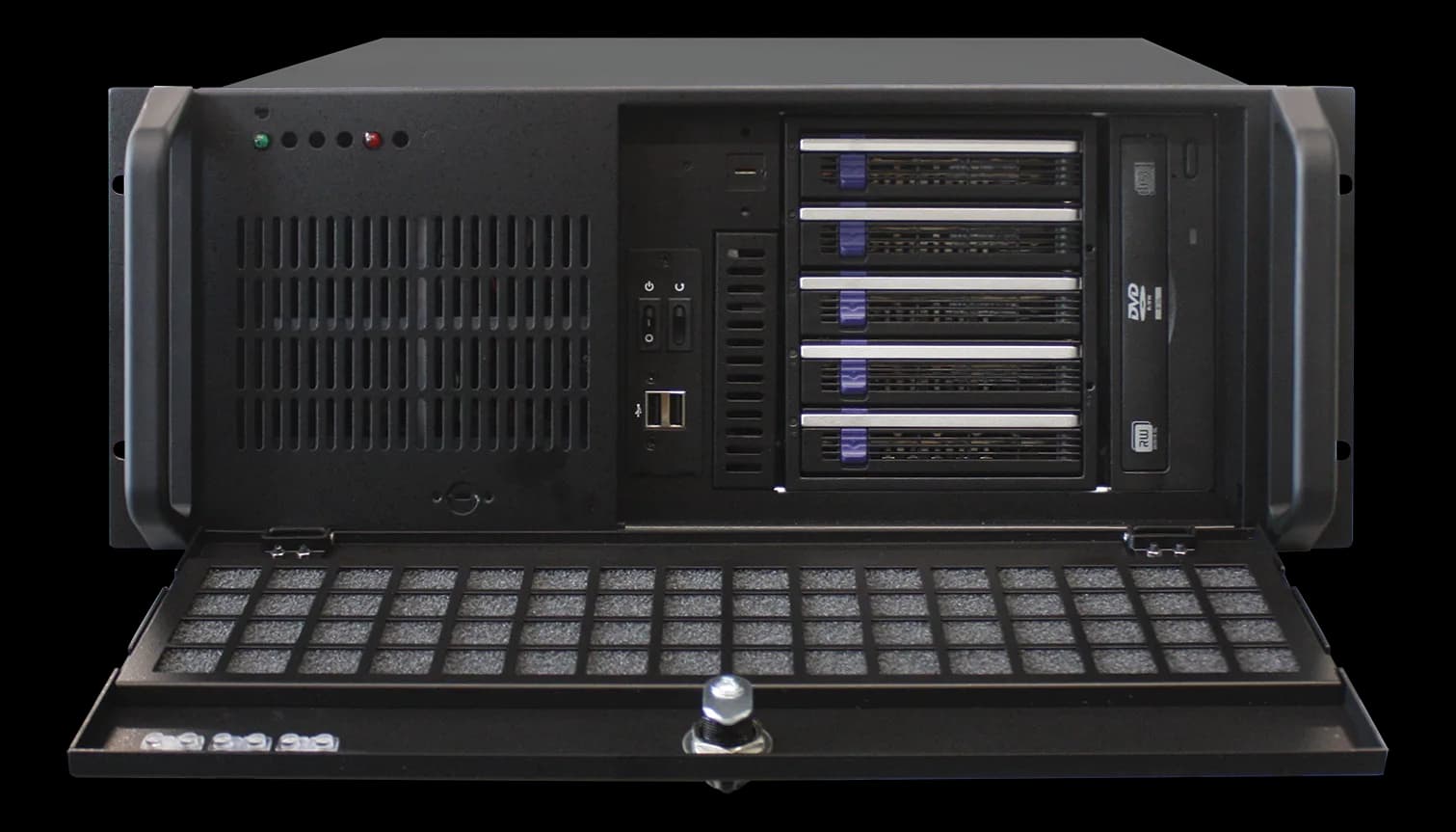

The front is closed by a door with a snap lock, behind which sit four 5.25" optical bays, a vertical floppy and the washable air filter. The rear bay accepts a single ATX power supply or a mini redundant one.
At a glance
- Storage: 4 x 5.25” + 1 x 3.5” (verticali) e 1 x 3.5” (opzionale)
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 4 x 5.25” + 1 x 3.5” (verticali) e 1 x 3.5” (opzionale) |
|---|
| Other I/O | Fronte: Porta drives con serratura, 1 x PS2 e 1 x USB (optional) · Retro: Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–700 W(optional) |
|---|
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 510 mm |
| Front panel buttons | Power On/Off Momentary (Pushbutton) e System Reset |
| Other features | Struttura per drives ammortizzata Barra di ritenzione schede ad altezza regolabile |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | 1 filtro per l’aria rimovibile dal fronte |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
