Industrial PCs with Motherboard

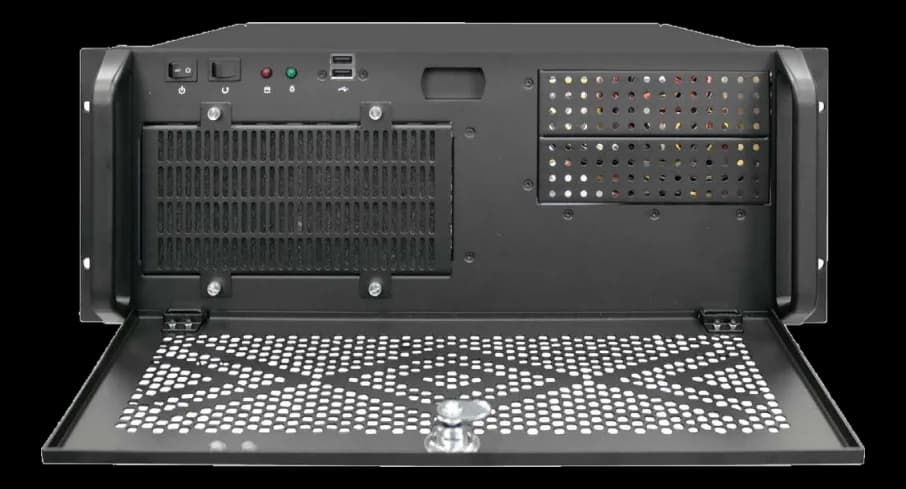

GO-404A-IPC4U rack chassis with locking drive door for ATX motherboards
- Manufacturer
GO-404A is a four rack unit chassis in pre-galvanized steel for 19 inch cabinets: the locking front door closes the drive bays and the air filters slide out from the front.
The chassis accepts an ATX motherboard up to 12″ × 13″ and seven low profile brackets; on the front two 5.25″ drives, one internal 2.5″ drive and two USB. Two 90 mm fans cool the interior, with another two of 60 mm on request.
At a glance
- Storage: 2 x 5.25” CD ROM + 1 x 2.5” HDD interno
- Motherboard form factor: E-ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 2 x 5.25” CD ROM + 1 x 2.5” HDD interno |
|---|
| Other I/O | Fronte: Porta drives con serratura 2 x USB · Retro: Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | E-ATX |
|---|---|
| Number of slots | 7 |
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 408 mm |
| Front panel buttons | Power On/Off e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
| Air filter | filtro per l’aria rimovibile dal fronte |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
