Industrial PCs with Motherboard
GO-110-M45-IPC1U rack chassis for the IMB-M45 motherboard, 450 mm deep
- Manufacturer

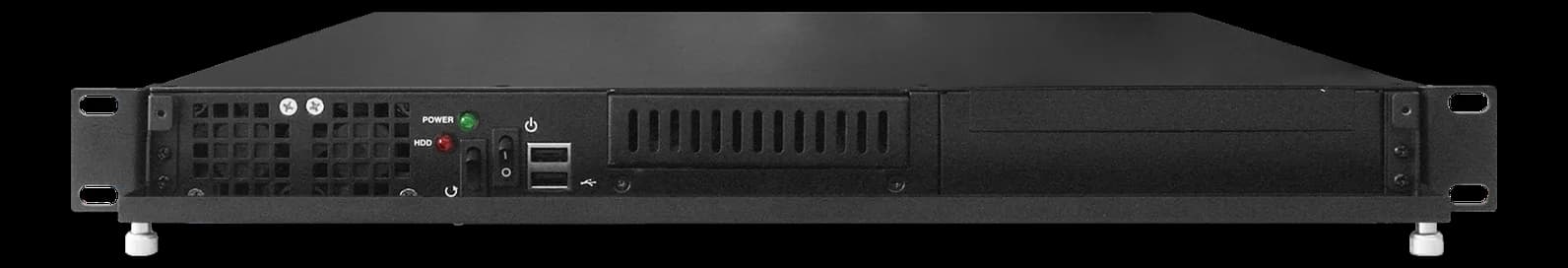

GO-110-M45 is a one rack unit chassis for 19 inch cabinets, built around the IMB-M45 motherboard: 450 mm deep, with a rocker power switch on the front.
The right bay accepts a slim drive with an internal 3.5″ drive, the left one a second 3.5″; expansion is entrusted to one PCIe x16 slot on a riser board. Five 40 mm fans cross the chassis and the front carries two USB 2.0 with the power and drive LEDs.
At a glance
- Storage: Baia destra: 1 x 5.25 slim + 1 x 3.5″ interno o 1 x 5.25″ con drives | estraibili in alto. | Baia sinistra: 1×3.5″ estraibile o 1x 3.5″ interno | 1x 2.5″ interno
- Motherboard form factor: ATX
- Number of slots: 1
- Expansion: 1 slot PCIe x16 (riser)
- Mounting: Rack Mount
Technical specifications
| Storage | Baia destra: 1 x 5.25 slim + 1 x 3.5″ interno o 1 x 5.25″ con drives | estraibili in alto. | Baia sinistra: 1×3.5″ estraibile o 1x 3.5″ interno | 1x 2.5″ interno |
|---|
| Other I/O | Fronte: 2 x USB 2.0 |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 1 |
| Expansion | 1 slot PCIe x16 (riser) |
|---|
| Rack units | 1 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero o altri colori su richiesta |
| Dimensions | Chassis 1U - 483 x 44 x 450 mm |
| Front panel buttons | Power On/Off Momentary (Rocker) e System Reset |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
