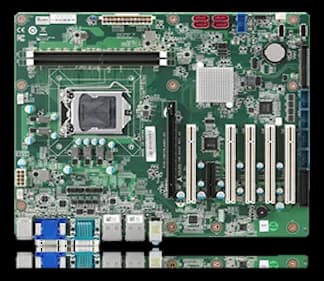

IMB-M43HIndustrial ATX motherboard with Intel H110 chipset and LGA1151 socket
- Manufacturer

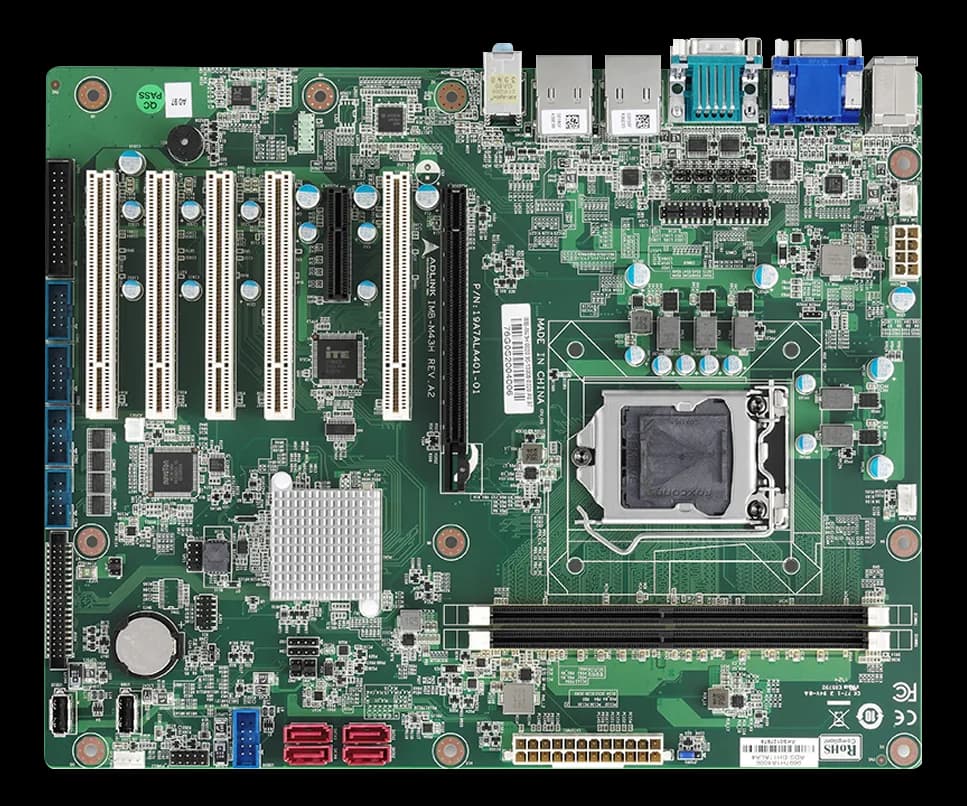

IMB-M43H is an industrial ATX motherboard: it takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors, 6th Gen (Skylake) and 7th Gen (Kaby Lake), with TDP up to 65 W. Memory reaches 32 GB.
Expansion offers PCIe x16, PCIe x4 and PCI slots. Video outputs cover VGA and HDMI. Storage covers SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU socket: LGA1151
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 7th gen (Kaby Lake)
- Processor: Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T)
- Watchdog: sì
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | H110 |
| CPU class | Intel Core i3/i5/i7/i9Intel Celeron/Pentium |
| BIOS | AMI® UEFI BIOS, 128 Mb SPI Flash Memory |
| CPU generation | 7th gen (Kaby Lake)6th gen (Skylake) |
| Processor | Intel® Core™ i7-6700, 3.4 GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4 GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-6500, 3.2 GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-6500TE, 2.3 GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-6100, 3.7 GHz, 3M Cache, 14nm, 51W TDP, LGA1151 (2C/4T) Intel® Core™ i3-6100TE, 2.7 GHz, 4M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) Intel® Pentium® G4400, 3.3GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/2T) Intel® Pentium® G4400TE, 2.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900, 2.8GHz, 2M Cache, 14nm, 51W TDP, LGA1151 (2C/2T) Intel® Celeron® G3900TE, 2.3GHz, 2M Cache, 14nm, 35W TDP, LGA1151 (2C/2T) Intel® Core™ i7-7700, 3.6GHz, 8M Cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-7700T, 2.9GHz 8M Cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel® Core™ i5-7500, 3.4GHz, 6M Cache, 14nm, 65W TDP, LGA1151 (4C/4T) Intel® Core™ i5-7500T, 2.7GHz, 6M Cache, 14nm, 35W TDP, LGA1151 (4C/4T) Intel® Core™ i3-7101E, 3.9GHz, 3M Cache, 14nm, 54W TDP, LGA1151 (2C/4T) Intel® Core™ i3-7101TE, 3.4GHz, 3M Cache, 14nm, 35W TDP, LGA1151 (2C/4T) |
| Watchdog | sì |
| CPU TDP | 65–65 W |
| CPU cores | 2–4 |
| CPU threads | 2–700 |
| Graphics | Integrated Intel® HD Graphics series (based on CPU) |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 32–32 GB |
| Memory | Two 288 PIN DDR4 Sockets (vertical type) · Dual channel DDR4 2133/2400 MHz, up to 32 GB |
| Storage | 4x SATA 6.0 Gb/s connectors |
|---|
| Video outputs | 1x VGA connector (rear), resolution up to 1920 x 1200 @ 60 Hz · 1x HDMI connector (rear) resolution up to 4096 x 2160 @ 24 Hz |
|---|
| USB ports | 4x USB 3.0 connectors (rear) 2x USB 2.0 connectors (rear) 2x USB 2.0 pin headers 2x USB 2.0 (vertical type A connector) · KB/MS Combo, VGA, COM, Line Out, Line In, HDMI, COM, Mic In, USB 2.0, LAN + USB 3.0 |
|---|---|
| Audio | Realtek® ALC888S · 1x Mic-in, 1x Line-out and 1x Line-in connector (rear) |
| Digital I/O | 2x 20-pin/2.0mm GPIO pin header: 16 in and 16 out, one ground pin and one power pin (5V/12V/no power, jumper selected) |
| Ethernet ports | LAN1: Intel® I219-LM with 10/100/1000 Mbps via RJ-45 connector (rear) LAN2: Intel® I225-V with 10/100/1000 Mbps via RJ-45 connector (rear) (Microsoft doesn't released WIN 7 driver. I225 supports WIN 10 only) · LAN1 and LAN2 support |
| Serial interfaces | 2x RS-232/422/485 with auto flow control connector (rear) 4x RS-232 pin headers |
| Other I/O | 1x LPT pin header · 1x PS/2 keyboard & Mouse connector (rear) |
| Form factor | ATX |
|---|
| Expansion | 1xPCIe x16 Gen3 1xPCIe x4 Gen2 5x PCI 2.2 |
|---|
| Dimensions | 305 × 244 |
|---|---|
| Other features | CPU voltage +3.3 V voltage +5 V voltage +12 V voltage CPU temperature System temperature CPU fan speed System fan speed |
| Storage temperature | -40–85 °C |
|---|---|
| Operating temperature | 0~60 |
| Certifications | FCCCE |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
