Industrial Desktop Motherboards – ATX

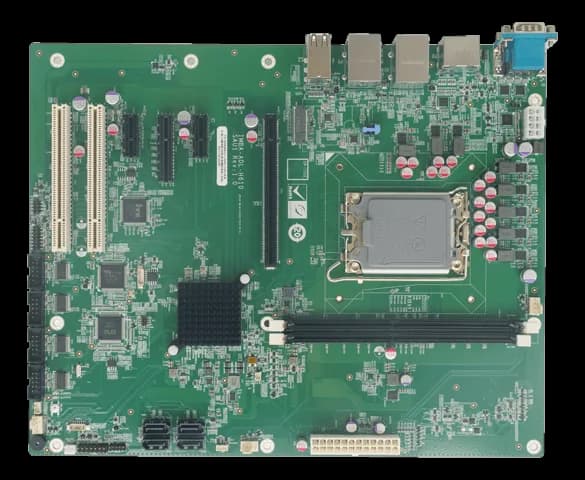

IMBA-ADL-H610Industrial ATX motherboard with LGA1700 socket and Intel H610 chipset
- Manufacturer
- Configurations
- 1 available configurations
The board takes Intel Core i9/i7/i5/i3, Pentium and Celeron processors of the 12th, 13th and 14th generation with TDP up to 65 W; memory runs on two dual-channel DIMMs at 3200 MHz.
The video section drives three independent displays through DisplayPort, HDMI and the iDPM connector for eDP/LVDS/VGA modules; networking pairs a port with an Intel I219LM controller with a 2.5GbE port. Four SATA ports, RS-232/422/485 serial interfaces, a PCIe x16 Gen4 slot and further PCIe slots complete the set.
The board measures 244 × 305 mm, works from -10 to 60 °C and is CE and FCC compliant.
At a glance
- CPU socket: LGA1700
- CPU class: Intel Celeron/Pentium
- TPM: PTT / fTPM (firmware)
- CPU generation: 14th gen (Raptor Lake-R)
- Processor: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
Technical specifications
| CPU socket | LGA1700 |
|---|---|
| Chipset | H610EH610 |
| CPU class | Intel Celeron/PentiumIntel Core i3/i5/i7/i9 |
| TPM | PTT / fTPM (firmware) |
| BIOS | AMI UEFI BIOS |
| CPU generation | 14th gen (Raptor Lake-R)12th gen (Alder Lake)13th gen (Raptor Lake) |
| Processor | LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
| Watchdog | Yes(sec · 1-255) |
| CPU TDP | 65 W |
| Graphics | Intel® UHD Graphics |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 64 GB |
| Memory | Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB |
| Storage | 4 x SATA |
|---|
| Video outputs | 1 x Display Port : up to 4096 x 2304 @60Hz1 x iDPM : support iEi eDP/ LVDS/ VGA module |
|---|
| USB ports | 2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)2 x Internal USB 2.0 : 2:x4 pin, P=2.542 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)4 x USB 2.0 (Type-A)2 x External USB 3.2 Gen1x1: 5Gb/s (Type A)2 x External USB 3.2 Gen2x1: 10Gb/s (Type A) |
|---|---|
| Digital I/O | 1 x 12bit-DIO (2x7 pin)(bidir) |
| Ethernet ports | 2 x LAN - LAN1: Intel® I219 LM controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Serial interfaces | 4 x Internal RS-232 : 2x5 pin, P=2.542 x External RS-232/422/485 : RS-485 support AFC |
| Other I/O | 1 x SMBus (1x4 pin) |
| Form factor | ATX |
|---|
| Expansion | 1 x PCIe x16 : Gen4 slot with x16 Signal1 x PCIe x4 : Gen3 open-end1 x PCIe x16 : Gen4 slot with x16 Signal (**Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and stora(storage)1 x PCIe Gen4 x16(PCIe-x16) |
|---|
| Weight | 0.7 kg0.9 kg(net) |
|---|---|
| Dimensions | 244 × 305 mm |
| Storage temperature | -30–70 °C |
|---|---|
| Operating temperature | -10–60 °C |
| Certifications | FCCCE |
|---|
| Ethernet ports | 1 GbE2.5 GbE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Compatible systems
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| IMBA-ADL-H610-R11 |
