Industrial PCs with Motherboard

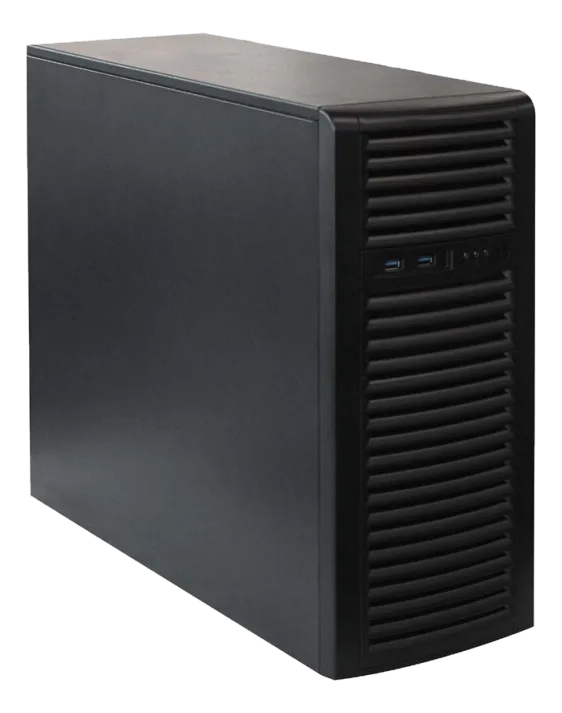

TWR-1213-7S-USB30-IPCLight industrial tower for ATX motherboards, 668 W power supply
- Manufacturer
TWR-1213-7S-USB30 is a tower in pre-galvanized steel for machine-side workstations and technical rooms where a rack cabinet is not needed.
It takes an ATX motherboard up to 12″ × 13″ and seven full size brackets with a board retainer, powered by a single 668 W PS2. The front carries two USB 3.0 and the power, drive, network and over-temperature LEDs; the bays take two 5.25″ drives and four internal 3.5″ drives, with a 120 mm PWM fan at the rear.
At a glance
- Storage: 2 x 5.25” & 4 x 3.5” interni
- Motherboard form factor: E-ATX
- Number of slots: 7
- Power input: Alimentatore PS2 singolo ATX 668 W (no PMBus)
- Cooling: Fan (active)
Technical specifications
| Storage | 2 x 5.25” & 4 x 3.5” interni |
|---|
| Other I/O | Fronte: 2 x USB 3.0 · Retro: Alloggiamento per 7 bracket full height con blocco schede full height |
|---|
| Motherboard form factor | E-ATX |
|---|---|
| Number of slots | 7 |
| Power input | Alimentatore PS2 singolo ATX 668 W (no PMBus) |
|---|
| Chassis material | Acciaio pre-zincato |
|---|---|
| Chassis color | Nero |
| Dimensions | Tower - 193 x 424 x 525 mm |
| Front panel buttons | Power On/Off |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–80 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
