IMB-M47Industrial ATX motherboard with Q670, DDR5 ECC and PCIe Gen 5
- Manufacturer
- Configurations
- 1 available configurations

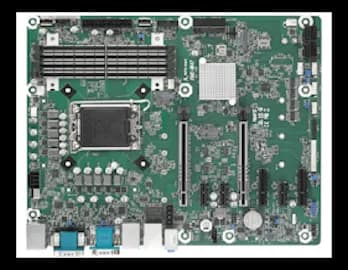

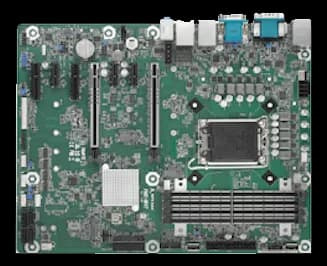

IMB-M47 is an industrial motherboard in ATX form factor, conceived for factory PCs that are integrated into standard chassis and stay in service for years. The socket takes Intel Core i9, i7, i5 and i3 processors of the 12th, 13th and 14th generation.
The Q670 chipset enables DDR5 memory with error correction and the platform exposes PCIe Gen 5, the bandwidth needed by the most recent accelerators and acquisition boards. On the continuity side the board declares RAID 0 on the drives and an operating temperature from 0 to 50 °C; the supported operating systems are Linux and Windows.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- TPM: TPM 2.0
- CPU generation: 12th gen (Alder Lake)
- Watchdog: Yes
- CPU TDP: 125 W
Technical specifications
| Chipset | Q670 |
|---|---|
| CPU class | Intel Core i3/i5/i7/i9 |
| TPM | TPM 2.0 |
| BIOS | AMI® UEFI BIOS, 256 Mb SPI Flash Memory |
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R) |
| Watchdog | Yes |
| CPU TDP | 125 W |
| RAM type | DDR5 |
|---|---|
| ECC support | No |
| Maximum RAM | 128 GB |
| Memory | Share memory allows you to configure the size of memory that is allocated to the integrated graphics processor when the system boots up. Configuration options: [Auto] [32 M] [64 M] [128M] [256M] [512 4x 288-pin DDR5 NON ECC socket, dual-channel DDR5 4400 MHz, up to 128 GB (based on CPU)4x DDR5 UDIMMs 4400MHz, up to 128GB, non-ECC |
| Storage | 8x SATA 6.0 Gb/s connectors, Intel® software RAID 0/1/5/10 support8x SATA 6Gb/s ports |
|---|
| Video outputs | 1x HDMI 2.0b connector (rear) resolution up to 4096 x 2160 at 30 Hz1x VGA connector (rear), resolution up to 1920 x 1200 at 60 Hz1x DP 1.4++ connector (rear), resolution up to 4096 x 2160 at 60 Hz(DisplayPort) |
|---|
| USB ports | 1x USB 3.2 Gen2 type C connector (rear)1x USB 3.2 Gen2x2 (Type C, rear I/O)2x USB 2.0 vertical connectors2x USB 2.0 via pin headers2x USB 3.1 via pin headers2x vertical USB 2.0 type A ports for internal dongles5x USB 3.2 Gen2 connectors (rear)Use this option to control USB power.(optional) |
|---|---|
| Audio | 1x Line-in, and1x Line-out connectors (rear)1x Mic-inRealtek ALC897Realtek® ALC897 |
| Digital I/O | 8x GPI, 8x GPO (shared with LPT header)(GPIO · pin-header · in)8x GPI, 8x GPO (shared with LPT header)(GPIO · pin-header · out) |
| Ethernet ports | Intel® I226-LM via RJ45 connector, with 10/100/1000/2500 Mbps, vPro supportIntel® I226-V via RJ45 connector, with 10/100/1000/2500 Mbps |
| Serial interfaces | 2x RS-232/422/485 (rear I/O)4x RS-232 (pin header) |
| Form factor | ATX |
|---|
| Expansion | 1x PCIe x16 Gen5, 1x PCIe x8 Gen5, 2x PCIe x4 Gen4, 3x PCIe x1 Gen32x PCIe x4 Gen43x PCIe x1 Gen3 |
|---|
| Storage temperature | -40–85 °C |
|---|---|
| Operating temperature | 0–50 °C |
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows |
|---|
| Ethernet ports | 1 GbE2.5 GbE |
|---|---|
| RAID | RAID 0 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
