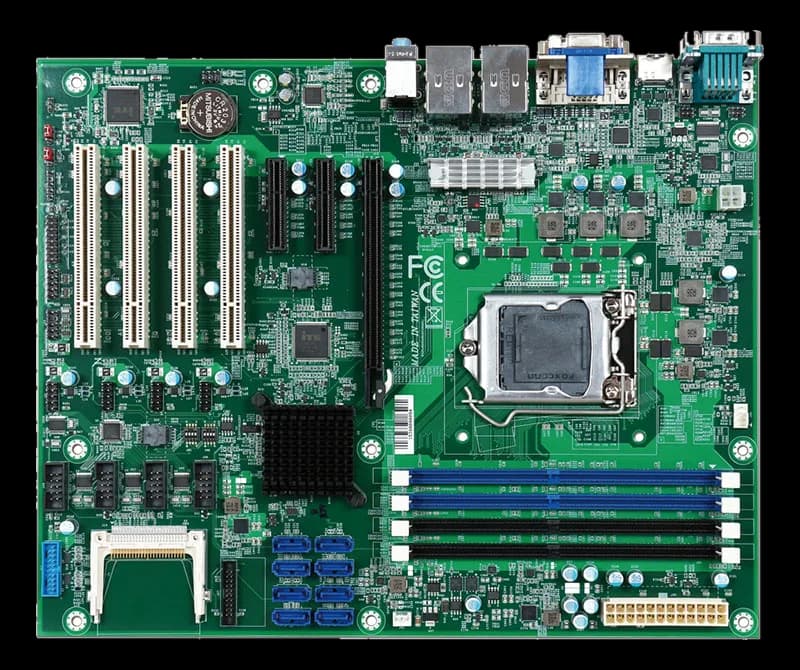

RUBY-D718VG2ARIndustrial ATX motherboard with Intel C236/Q170 chipset and LGA1151 socket
- Manufacturer
RUBY-D718VG2AR is an industrial ATX motherboard: it brings computing into a standard chassis, 6th Gen (Skylake) and 7th Gen (Kaby Lake). Memory reaches 64 GB, with error correction.
Expansion offers PCIe x16, PCIe x4 and PCI slots. Video outputs cover VGA, HDMI and DVI. Storage covers SATA. Operating range is declared between 0 and 60 °C.
At a glance
- CPU socket: LGA1151
- TPM: Header (provision)
- CPU generation: 6th gen (Skylake)
- Processor: Intel® 7th and 6th Gen Core™ Processors in LGA1151 package · Intel® Kaby Lake / Sky Lake -S Core™ i Processors
- Watchdog: sì
Technical specifications
| CPU socket | LGA1151 |
|---|---|
| Chipset | C236Q170 |
| TPM | Header (provision) |
| BIOS | AMI UEFI BIOS (SPI ROM) |
| CPU generation | 6th gen (Skylake)7th gen (Kaby Lake) |
| Processor | Intel® 7th and 6th Gen Core™ Processors in LGA1151 package · Intel® Kaby Lake / Sky Lake -S Core™ i Processors |
| Watchdog | sì |
| Graphics | Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.4 |
| RAM type | DDR4 |
|---|---|
| ECC support | sì |
| Maximum RAM | 64–64 GB |
| Memory | Up to 64 GB 4x DDR4 2133/1866 ECC/ Non-ECC DIMM |
| Storage | 6x SATA III ports (Q170 PCH) 8x SATA III ports (C236 PCH) · - Up to eight SATA 6Gb/s ports (Q170 supports six SATA 6Gb/s ports) - One SATA 6Gb/s CFEX (switch with one SATA port) |
|---|
| Video outputs | VGA/DVI-D/HDMI support triple display · - DVI-D: 1x DVI-D port on rear I/O, up to 1920x1200@60Hz - HDMI: 1x HDMI port on rear I/O, up to 4096x2160 @ 24Hz - VGA: 1x VGA port on rear I/O, up to 1920x1200 @ 60Hz |
|---|
| USB ports | 4x USB 3.0 ports on rear I/O, 2x USB 3.0 ports on pin header, 8x USB 2.0 ports on pin header |
|---|---|
| Audio | Realtek ALC886 HDAcodec, Audio jack on rear I/O with Line-out/ Line-in/ Mic-in |
| Digital I/O | 8-bit configurable controlled by embedded controller · One pin-header for 8 bit GPIO(4bit in & 4bit out) |
| Ethernet ports | Intel® I219LM and Intel® I210AT Ethernet controller 2x RJ45 connectors on rear I/O |
| Serial interfaces | 5x RS232, 1x RS232/422/485 |
| Other I/O | Option TPM module with LPC pin header, PS/2 Keyboard & Mouse Pin Header · PS/2 Keyboard & Mouse Pin Header · Option TPM module with LPC pin header |
| Form factor | ATX |
|---|
| Expansion | 1x PCIe x16 Gen3, 2x PCIe x4 Gen3, 4x PCI · 4x PCI slots, 1x PCIe x16 slot, 2x PCIe x4 slot |
|---|
| Power input | 24 Pin ATX power input |
|---|
| Dimensions | 304.8 × 243.8 |
|---|---|
| Other features | Over 120,000 hours at 40°C · System monitor voltage, fan speed, and temperature · N/A |
| Storage temperature | -20–80 °C |
|---|---|
| Operating temperature | 0~60 |
| Certifications | CEFCC |
|---|
| Operating systems | WindowsLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
