GO-402ATXR-IPCBeige 4U rack chassis with hot-swap fans and locking door
- Manufacturer
- Configurations
- 1 available configurations
GO-402ATXR is a four rack unit chassis in cold rolled steel, sized for equipment with many front drives installed in a cabinet.
The bays take three 5.25" optical drives and a 3.5" floppy, protected by a locking door. Cooling is entrusted to hot-swap fans and the air filter is washable; the rear bay accepts a single or mini redundant ATX power supply, rated up to 700 W in the single version.
At a glance
- Storage: 3 x 5.25” + 1 x 3.5”
- Motherboard form factor: ATX
- Number of slots: 7
- Mounting: Rack Mount
- Cooling: Fan (active)
Technical specifications
| Storage | 3 x 5.25” + 1 x 3.5” |
|---|
| Other I/O | Fronte: Porta drives con serratura, connettore tastiera · Retro: Alloggiamento per 7 bracket full height |
|---|
| Motherboard form factor | ATX |
|---|---|
| Number of slots | 7 |
| PSU power | 500–700 W(optional) |
|---|
| Rack units | 4 |
|---|---|
| Mounting | Rack Mount |
| Chassis material | Acciaio pre-zincato |
| Chassis color | Nero, beige o altri colori su richiesta |
| Dimensions | Chassis 4U - 483 x 177 x 451 mm |
| Front panel buttons | Power On/Off e System Reset |
| Other features | Struttura per drives ammortizzata Barra di ritenzione schede ad altezza regolabile |
| Cooling | Fan (active) |
|---|---|
| Storage temperature | -20–70 |
| Operating temperature | 0~50 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

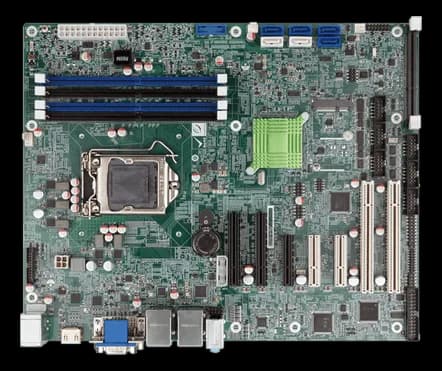

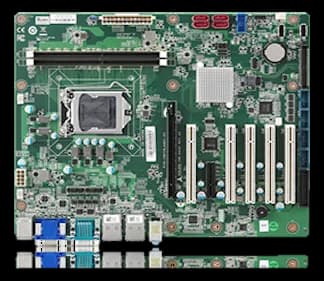

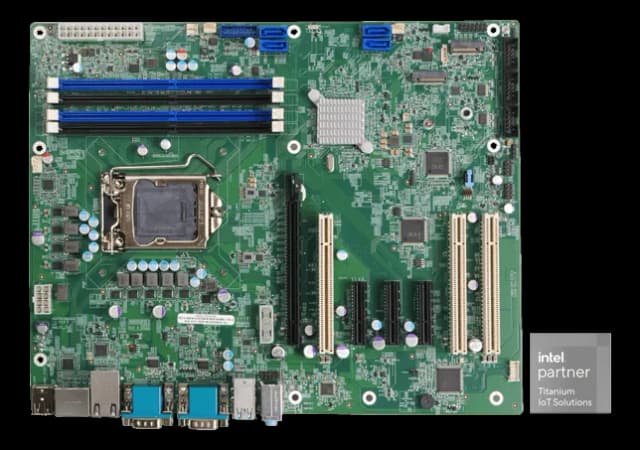

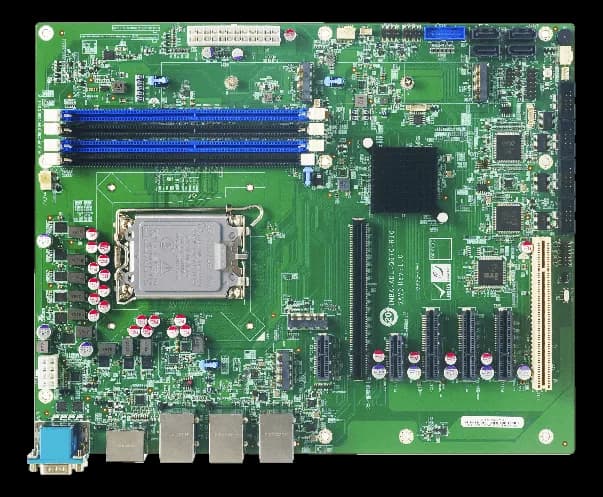

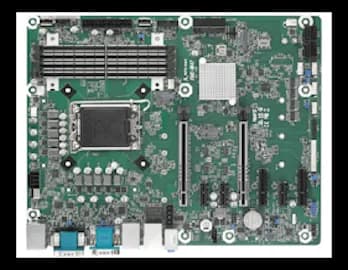

Compatible boards
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| GO-402ATXR-B |
